In the realm of industrial and commercial electrical systems, ensuring robust circuit protection is paramount. The MCCB detailed here is engineered to meet rigorous demands, offering reliable performance for various applications.

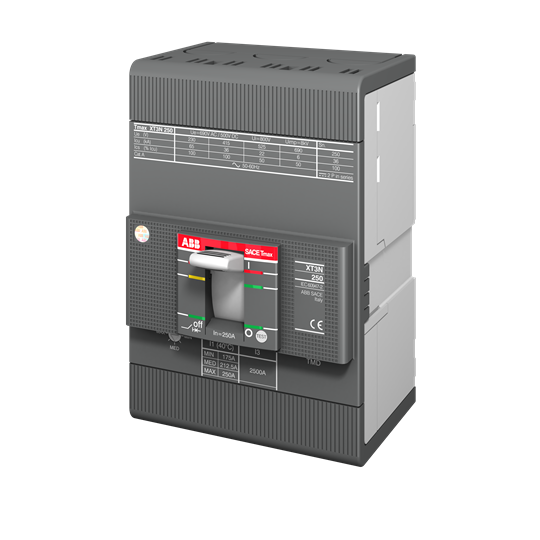

At its core, this Molded Case Circuit Breaker (MCCB) is designed with a rated current of 200 A, making it suitable for medium-sized installations. It boasts a rated impulse withstand voltage of 8 kV and a rated insulation voltage up to 800 V, ensuring it can handle unexpected surges effectively.
With dual voltage capabilities—690 VAC and 500 VDC—the MCCB offers flexibility in application across different power systems. Its thermal-magnetic (TM) release type combined with a TMD trip unit ensures precise and responsive protection against overloads and short circuits.
The device's breaking capacity stands at an impressive 36 kA, providing peace of mind that your system will remain protected even in extreme fault conditions. This capability is complemented by its front connection type and bolt terminal configuration, which facilitate straightforward installation and maintenance.
Measuring 105 mm in width and weighing just 1.7 kg, the MCCB strikes a balance between compactness and durability. It conforms to IEC60947-2 standards, underscoring its compliance with international safety requirements.
Rated at IP20 for degree of protection, this MCCB is suitable for environments where dust ingress needs to be minimized but water resistance isn't critical. It's compatible with XT3N setups, allowing seamless integration into existing systems without hassle.
For those concerned about energy efficiency, the power loss is maintained at a low 13.2 W during operation—a crucial factor when considering long-term operational costs in large-scale installations.
The current setting range varies from 140-200 A, providing adaptability according to specific load requirements while maintaining optimal performance levels within your infrastructure's parameters.
Its main circuit connecting capacity spans from 85 to 192 square millimeters (sq-mm), accommodating various cable sizes typical in industrial settings. This versatility ensures that you can tailor connections based on particular project specifications or constraints without compromising safety or functionality.
Overall, this MCCB provides dependable circuit protection tailored for professionals who require precision engineering alongside practical features that enhance usability across diverse scenarios within Australia's technical landscape.
