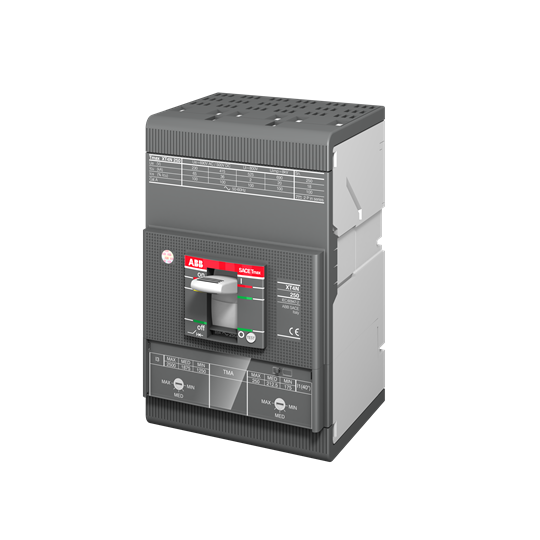

When selecting an MCCB for industrial or commercial applications, understanding the technical specifications is crucial. This particular model offers a robust solution with its comprehensive features and capabilities tailored to meet demanding electrical requirements.
The MCCB is designed with a rated current of 160 A, making it suitable for medium-duty applications. It can handle a rated voltage of 690/750 VAC/VDC, providing flexibility in various electrical environments. Its impressive breaking capacity of 50 kA ensures reliable performance during fault conditions, protecting both equipment and personnel.
Safety and reliability are further enhanced by its rated impulse withstand voltage of 8 kV and insulation voltage of 1000 V. These parameters indicate the device's ability to withstand surges and maintain insulation integrity under high-stress conditions.
The trip unit type TMA (thermal magnetic adjustable) allows for precise control over tripping characteristics, enhancing protection against overloads and short circuits. The release type TM (thermal magnetic) provides dependable operation across diverse load profiles.
With three poles, this MCCB is well-suited for three-phase systems common in industrial settings. The front connection type facilitates straightforward installation and maintenance access, while bolt terminals ensure secure connections capable of handling a main circuit connecting capacity between 85-200 sq-mm.
The product adheres to IEC60947-2 standards, guaranteeing compliance with international safety regulations. Rated at IP20 degree of protection, it offers basic protection against solid objects greater than 12 mm but requires placement within an enclosure for full environmental protection.
Weighing in at just 2.5 kg with a width of 105 mm, this compact unit integrates easily into existing panels without significant space constraints. Furthermore, its power loss is minimized at only 8.88 W, contributing to energy efficiency within your system.
This MCCB operates effectively within a frequency range of 50/60 Hz and supports use with XT4S devices—offering compatibility that enhances system versatility across different installations.
In summary, this MCCB stands out as a reliable choice for those seeking durability combined with efficient performance in managing electrical distribution needs across commercial or industrial settings.
