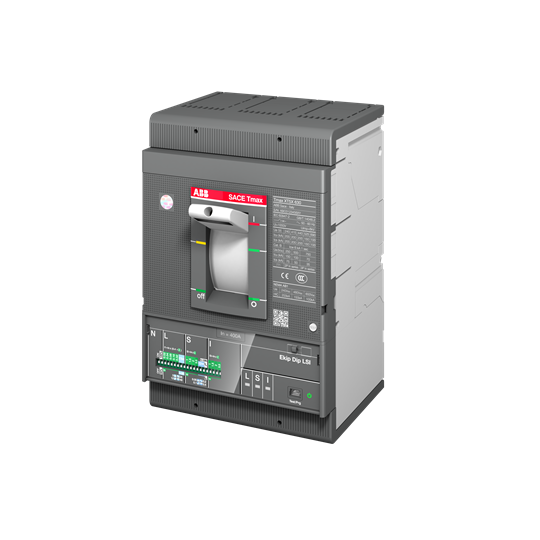

When selecting a Molded Case Circuit Breaker (MCCB) for your industrial or commercial application, it's essential to consider both performance and compatibility with existing systems. The MCCB in question offers robust features designed to meet demanding electrical requirements while ensuring safety and reliability.
With a rated current of 630 A, this MCCB is well-suited for high-demand applications, providing ample capacity to handle substantial electrical loads. Its rated voltage of 690 VAC ensures it can efficiently manage power distribution in various settings.
Safety is paramount when dealing with electrical components, and this MCCB addresses that concern with its rated impulse withstand voltage of 8 kV. This feature helps protect against transient overvoltages, enhancing the durability and reliability of your system. Additionally, the unit's rated insulation voltage stands at 1000 V, offering further assurance against electrical faults.
The trip unit incorporated in this MCCB is the Ekip Dip LSI type. This advanced trip unit provides precise protection by allowing adjustments for long-time (L), short-time (S), and instantaneous (I) fault conditions. Such flexibility ensures that the circuit breaker responds appropriately to different fault scenarios without unnecessary interruptions.
In terms of physical attributes, this MCCB features a compact width of 140 mm and weighs 4.82 kg, making it manageable during installation while saving valuable panel space. It comes equipped with three poles and boasts a breaking capacity of 36 kA, which means it can safely interrupt significant fault currents without damage.
For ease of integration into existing systems, this MCCB has a front connection type and conforms to IEC60947-2 standards—a critical consideration for ensuring compliance with international safety regulations.
The degree of protection provided by an IP20 rating indicates that the MCCB is protected against solid objects larger than 12 mm but not against water ingress—important information when planning its installation environment.
This product also demonstrates energy efficiency through its power loss specification at only 45 W under operation—a factor contributing to reduced operational costs over time.
Lastly, compatibility is key; hence this MCCB is suitable for use with XT5N systems, ensuring seamless integration into appropriate setups without compromising on performance or safety considerations.
