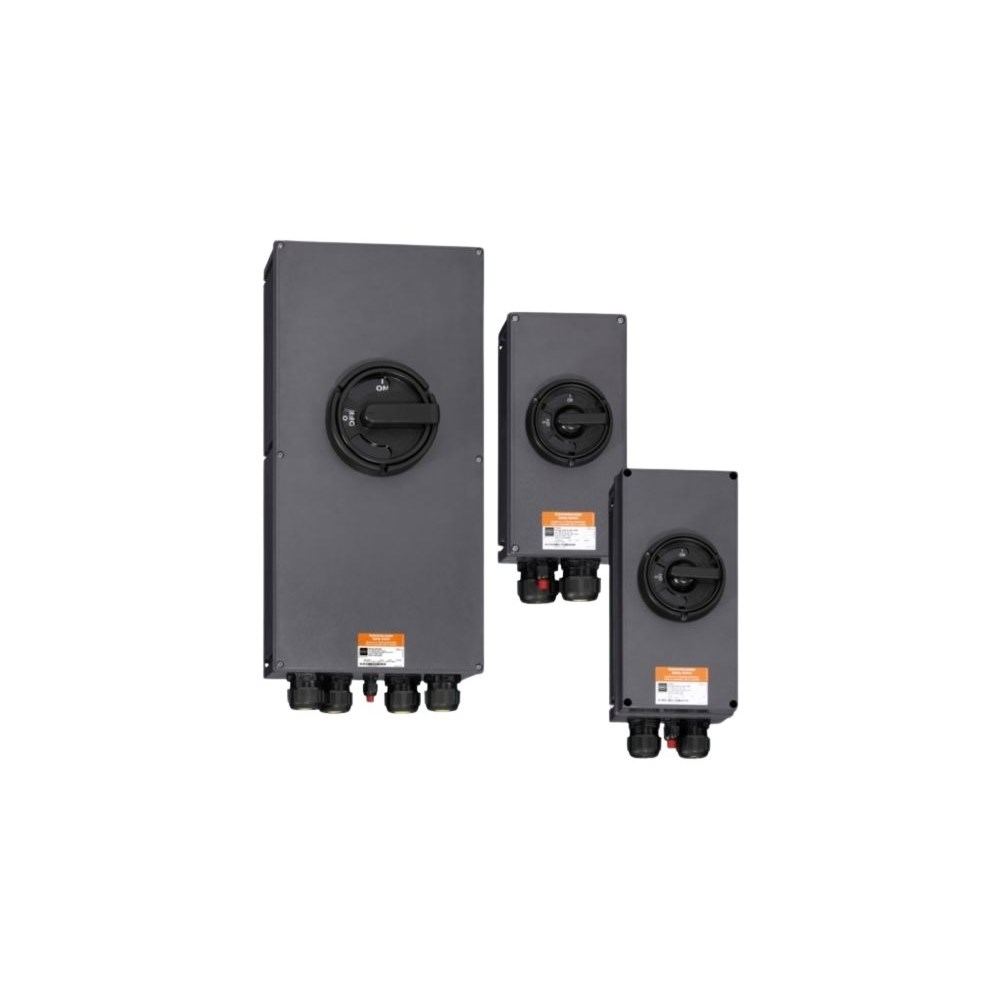

The 8146/5-V37 switch is a robust and reliable solution designed for industrial and commercial applications where durability and performance are paramount. With its IP66 degree of protection, this switch is built to withstand harsh environments, ensuring it remains dust-tight and protected against powerful water jets. This makes it an ideal choice for settings that demand high resilience against the elements.
Constructed from polyester resin reinforced with glass fibre, the switch offers excellent mechanical strength while maintaining a lightweight profile. This material combination not only enhances its durability but also provides resistance to various chemicals, which can be crucial in demanding industrial environments.
Operating within an ambient temperature range of -40 to 48 degrees Celsius, the 8146/5-V37 switch is versatile enough to function effectively in both extremely cold and moderately warm conditions. This adaptability ensures reliability across diverse geographical locations and operational settings.
Compliance with IEC/EN62626-1 standards underscores its adherence to international safety and performance benchmarks, providing users with confidence in its operational integrity. The switch boasts a rated current of 40 A and a rated voltage of 690 V, making it suitable for heavy-duty electrical applications that require robust power handling capabilities.
Featuring three poles and a contact configuration of 1 normally closed (NC) plus 1 normally open (NO), this switch facilitates efficient control over complex electrical circuits. Its dimensions—170 mm in width, 340.5 mm in height, and 176.5 mm in depth—allow for straightforward installation without compromising on space or accessibility.
In summary, the 8146/5-V37 series switch offers a compelling blend of durability, compliance with international standards, and adaptability to challenging environmental conditions. Its construction materials ensure longevity while the technical specifications meet the demands of rigorous industrial use cases.
