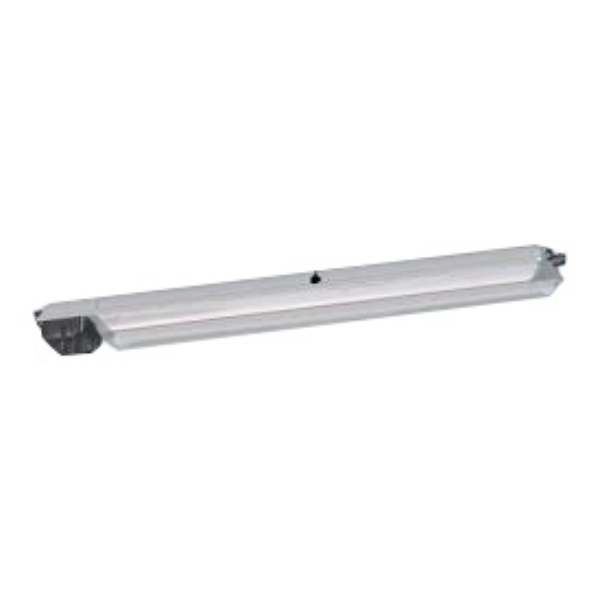

STAHL LINEAR LUMINAIRE FOR FLUORESCENT LAMP 18 W 238144
Zoom
STAHL LINEAR LUMINAIRE FOR FLUORESCENT LAMP 18 W 238144
Product Code: 238144
This Linear Luminaire is designed for use with a 18 W Fluorescent lamp. It operates at a rated voltage of 220-240 VAC and has a frequency range of 50-60 Hz. The luminaire can accommodate two lamps and has a degree of protection rating of IP66/IP67. With dimensions of 125 mm in height, 184 mm in width, and 700 mm in length, this product weighs approximately 4.5 kg.
Technical Specifications
Brand
STAHL
Ambient Temperature Range (°C)
-30 to +50
Application
Application range (zones) - 1, 2, 21, 22
Cable Cross Section (mm²)
4 - 6
Cable Type
Finely stranded, solid
Certifications
IECEx, ATEX
Colour
Enclosure - Light Grey (RAL 7035)
Degree of Protection
IP66/IP67
Dimensions (mm)
184W x 125H x 700D
Enclosure Material
Polyester resin, Glass fibre reinforced
Lamp Base
G13 lamp base
Lamp Type
LED
Lamp Wattage (W)
18
No. of Lamps
2
Rated Frequency (Hz)
50 - 60
Rated Impact Resistance
IK10
Rated Operational Voltage AC/DC (V)
220 - 240
Documents
Datasheet
Product catalogue (Flipbook)
