Product Code: 238147

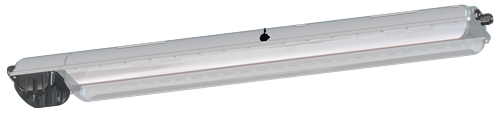

Explore the Stahl Series 6009/5 emergency luminaire, designed for hazardous areas and engineered to support fluorescent lamps. This robust lighting solution operates on a voltage range of 220.00 - 240.00 VAC and is equipped with a gas-tight NiCd battery boasting a 7.0 Ah capacity, ensuring continuous illumination for 1.5 to 3 hours during power outages. The unit features two 18W lamps emitting neutral white light, suitable for diverse operational needs. Built to withstand extreme temperatures from -30°C to +50°C and offering through wiring capabilities up to 3x16 A, this luminaire meets IP66/IP67 standards for maximum protection against dust and water ingress, making it an ideal choice for challenging environments.

Brand	STAHL
Ambient Temperature Range (°C)	-30 to +55
Application	Application range (zones) - 1, 2, 21, 22
Battery Size	6V, 7.0Ah
Cable Cross Section (mm²)	4 - 6
Cable Type	Finely stranded, solid
Certifications	IECEx, ATEX
Colour	Enclosure - Light Grey (RAL 7035)
Degree of Protection	IP66/67
Dimensions (mm)	183.5W x 125H x 857D
Enclosure Material	Polyester resin, Glass fibre reinforced
Lamp Base	G13 lamp base
Lamp Type	LED
Lamp Wattage (W)	18
Maximum Temperature (°C)	50
Minimum Temperature (°C)	-30
Mounting Type	Surface
No. of Lamps	2
Nominal Power (W)	18
Rated Frequency (Hz)	50 - 60
Rated Impact Resistance	IK10
Rated Maximum Operational Voltage AC (V)	240
Rated Minimum Operational Voltage AC (V)	220
Rated Operational Voltage AC (V)	220 - 240
Series	6009/5
Standards and Approvals	ATEX/IECeX

Hazardous Area Lighting

STAHL 6009/522-9617-1622-71 EMERGENCY LUMINAIRE FOR FLUORESCENT LAMPS GRP 238147
