Hazardous Area Lighting

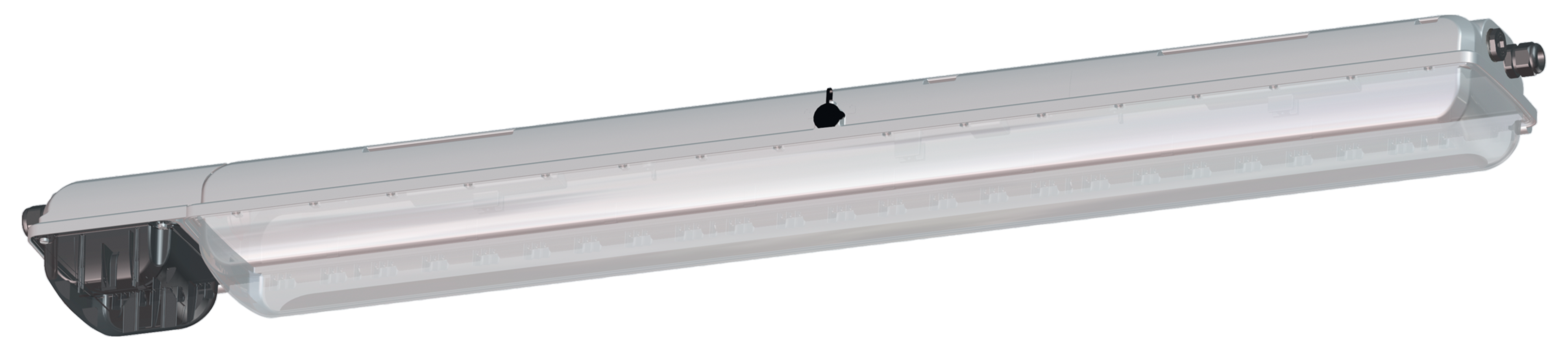

STAHL EMERGENCY LUMINAIRE WITH LED GRP, 100-240V AC 267866

Product Code: 267866

Technical Specifications

Battery Size 6V, 7.0Ah
Lamp Wattage (W) 25
No. of Conductors 6
No. of Lamps 1
Operating Time 1.5 / 3h Emergency Lighting Operation
Terminal Size (mm²) 6
Brand STAHL
Ambient Temperature Range (°C) -30 to +55
Application Application range (zones) - 1, 2, 21, 22
Cable Cross Section (mm²) 4 - 6
Cable Type Finely stranded, solid
Certifications IECEx, ATEX
Colour Enclosure - Light Grey (RAL 7035)
Conductor Cross Section (mm²) 2.5
Degree of Protection IP66/IP67
Dimensions (mm) 183.5W x 125H x 857D
Enclosure Material Polyester resin, Glass fibre reinforced
Lamp Type LED
LED Colour Neutral White
No. of Holes 3 x M20
Rated Frequency (Hz) 50 - 60
Rated Impact Resistance IK10
Rated Operational Voltage AC (V) 100 - 240
