Specifications

Dimensions (mm)	223H x 70W x 176D
Size of Frame	R1
No. of Phases	3
Operational Temperature Range (°C)	-10 to 50 (No frost allowed)

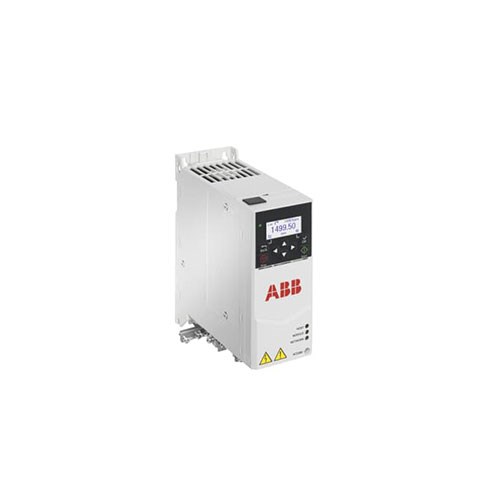

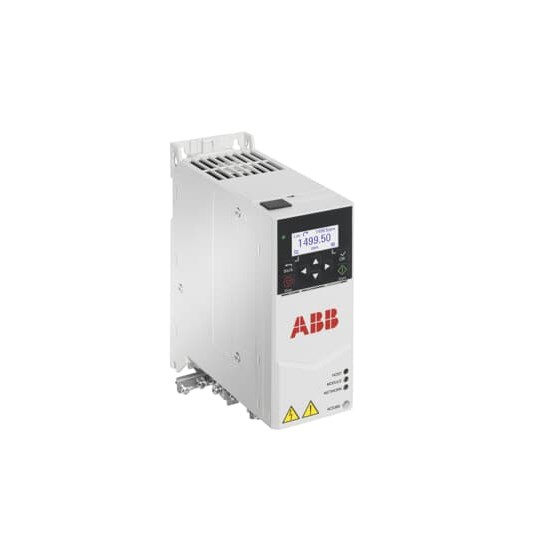

Reference No.	ACS380-040S-05A6-4
Rated Supply Voltage AC (V)	380 - 480
Output Current - Light Duty (A)	4.8
Output Power - Light Duty (kW)	2.2
Output Power - Heavy Duty (kW)	1.5
Output Current - Heavy Duty (A)	3.4
Output Current - Normal Duty (A)	5.6
Output Power - Normal Duty (kW)	2.2
Product Type	Variable Speed Machinary Drive
Brand	ABB
Series	ACS380
Communication	Modbus
Degree of Protection	IP20
Depth	176 mm
Frame Size	R1
Height	223 mm
Includes	Control Unit, PC Connection
Number of Analogue Inputs	2
Number of Digital Inputs	5
Number of Digital Outputs	2
Number of Hardware Interfaces	3
Number of RS-485 Interfaces	1
Operational Temperature	-10 to 50 deg C
Phase	3
Rated Current	4 A
Rated Frequency	47.5/63 Hz
Rated Power	2.2 kW
Rated Voltage	380-480 VAC
Standards and Approvals	CE, EN 61800-5-1, EN 61800-5-2, RoHS, UL, cUL, EAC
Width	70 mm
