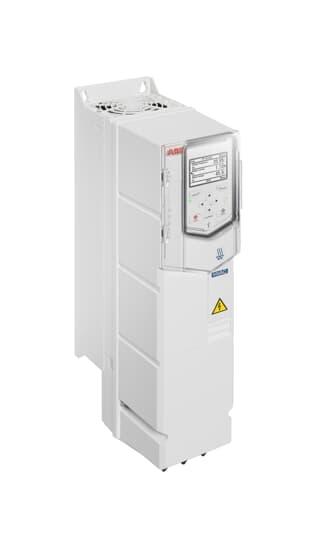

ABB ACH580 7.5KW 18A IP55 HVAC DRIVE W/ CP ACH580-01-018A-4+B056+J400
ABB ACH580 7.5KW 18A IP55 HVAC DRIVE W/ CP ACH580-01-018A-4+B056+J400
Product Code: 3AXD50000039010
ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Technical Specifications
Brand
ABB
Application
Industrial, Commercial & Domestic
Dimensions (mm)
128W x 503H x 239D
Input Voltage AC (V)
380 - 480
Maximum Output Voltage AC (V)
480
No. of Analogue Inputs
2
No. of Analogue Outputs
2
No. of Digital Inputs
6
No. of Digital Outputs
3
Output Power - Normal Duty (kW)
7.5
Communication Protocol
TCP/IP PROFIBUS CAN MODBUS DeviceNet / DeviceNet Safety LON PROFINET IO EtherNet/IP BACnet Other Bus Systems
Contains
Control Element PC Connection
Datasheets
ABB Motion
EAN
6438177459606
Maximum Output Frequency (Hz)
500
Nominal Output Current (A)
17
Number of Other HW Interfaces
2
Number of Parallel Interfaces
2
Number of RS-485 Interfaces
1
Number of USB Interfaces
1
Relative Symmetric Net Frequency Tolerance
5%
Relative Symmetric Net Voltage Tolerance
10%
Documents
Datasheet
ACH580 Firmware Manual.pdf
ACQ580 Hardware Manual.pdf
ACH580 Insatallation.pdf
