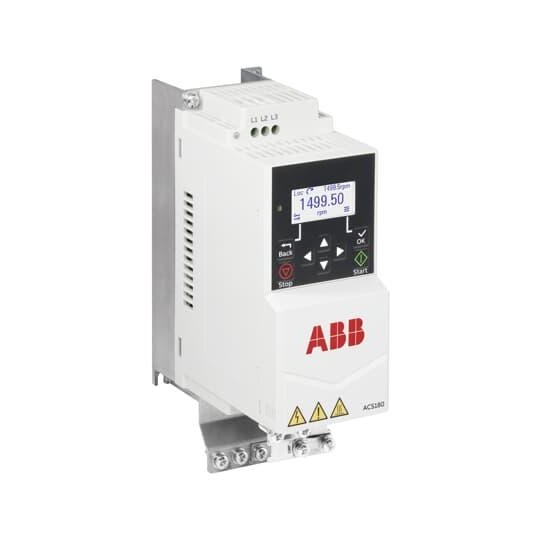

ABB ACS180 0.75KW 2.6A IP20 MACHINERY DRIVE W/ CP ACS180-04S-02A6-4 3AXD50000716630

Product Code: 3AXD50000716630

The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.

Technical Specifications

Communication Protocols MODBUS
Brand ABB
Application Domestic & Commercial
Contains Control Element PC Connection
Dimensions (mm) 70W x 209H x 143D
EAN 6438177649205
Input Voltage AC (V) 380 - 480
Maximum Output Frequency (Hz) 599
Maximum Output Voltage AC (V) 480
No. of Analogue Inputs 1
No. of Analogue Outputs 2
No. of Digital Inputs 4
No. of Digital Outputs 2
Nominal Output Current (A) 2.6
Number of Other HW Interfaces 1
Number of RS-485 Interfaces 1
Output Power - Normal Duty (kW) 0.75
Relative Symmetric Net Frequency Tolerance 5%
Relative Symmetric Net Voltage Tolerance 10%
