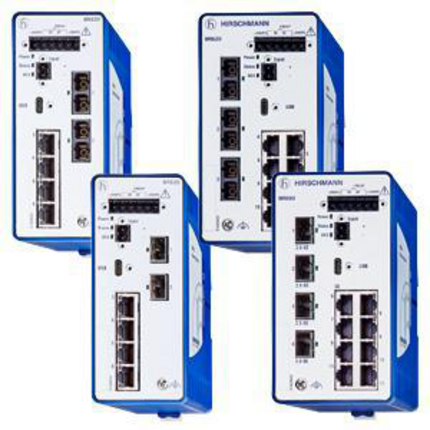

HIRSHMANN MANAGED INDUSTRIAL SWITCH FOR DIN RAIL 4X GIG TX, 8X FAST ETHERNET TX, 48/54 V DC, 0 - +60°C, HIOS L2S, POE+ 942170097

Product Code: 942 170-097

Hirschmann's networking solution offers a robust configuration with 4 Gigabit TX and 8 Fast Ethernet TX ports, designed for optimal performance in environments requiring 48/54 V DC power. Engineered to operate within a temperature range of 0 to +60 degrees Celsius, it integrates seamlessly with HiOS L2S software and supports Power over Ethernet Plus (PoE+) for enhanced network flexibility and efficiency.

Technical Specifications

Brand HIRSCHMANN
Approvals CE, FCC, EN61131, EN62368-1, Cul61010
Cable Length (m) 0 - 100
Degree of Protection IP30
Dimensions (mm) 73W x 138H x 115D
Electromagnetic Capability 10 V/m (80-2000 MHz) 5 V/m (2000-2700 MHz) 3 V/m (5100-6000 MHz)
Electrostatic Discharge (kV) 6 kV Contact Discharge, 8 kV Air Discharge
Housing Material PC-ABS
Mounting Type DIN Rail
Operating Voltage 2 x [48V DC (PoE) / 54V DC (PoE+)]
Operational Temperature Range (°C) 0 to +60
Port Quantity and Type 8 x 10/100BASE-TX / RJ45 4 x 10/100/1000BASE-TX / RJ45
Power Consumption (W) Max. 250W with 240W PoE
Power Output in BTU (IT)/h Max. 34
Protective Paint on PCB Yes (conformal coating)
Relative Humidity 1- 95 %
Resistance to Vibrations 5 Hz ... 8,4 Hz with 3,5 mm amplitude 2 Hz ... 13,2 Hz with 1 mm amplitude 8,4 Hz ... 200 Hz with 1 g 13,2 Hz ... 100 Hz with 0,7 g
Storage Temperature Range (°C) -40 to +70
Surge Voltage (kV) Power Line: 2 kV (Line/Earth) and 1 kV (Line/Line); Data Line: 2 kV
Transition Type 2 kV Power Line, 2 kV Data Line
Weight (g) 680
