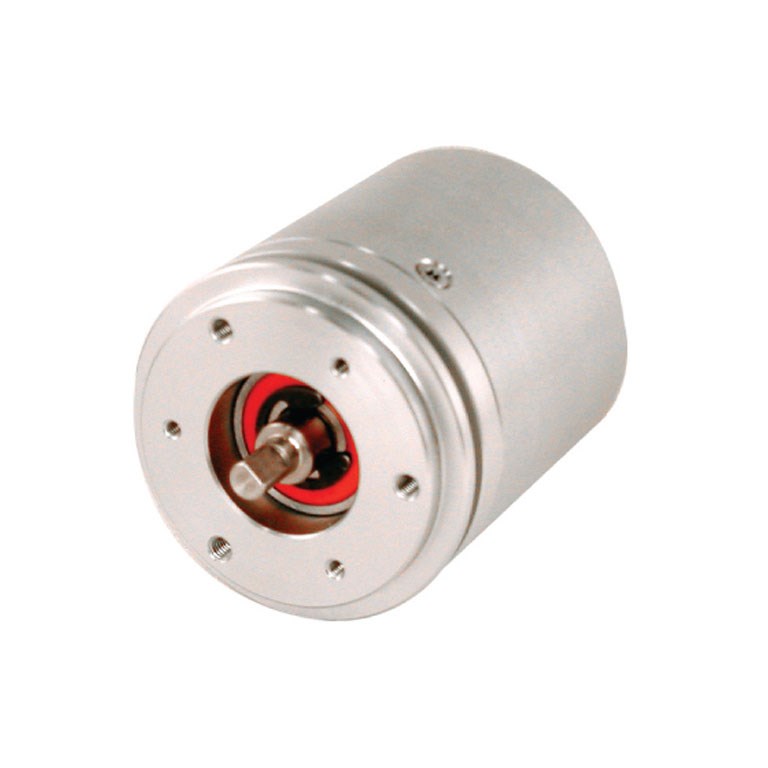

The 958 Series encoder is a robust and reliable choice for those in need of precise motion control solutions. Designed to meet the demanding requirements of industrial and commercial applications, this product offers a blend of durability and performance.
The encoder operates efficiently within a wide voltage range of 4.75-24 VDC, accommodating various power supply conditions. It draws a rated current of 100 mA, ensuring energy-efficient operation without compromising on output quality. The push-pull output type provides versatility in signal compatibility with different systems.
Mounting the encoder is straightforward with its DIN rail mounting type, which simplifies installation and integration into existing setups. This feature is particularly beneficial for users looking to streamline their assembly processes while maintaining system integrity.
With an impressive degree of protection rated at IP65, the encoder is well-suited for environments where dust and moisture are prevalent. Additionally, it can withstand humidity levels up to 98%, making it ideal for use in harsh or fluctuating weather conditions.
The operational temperature range from -20 to 85 degrees Celsius ensures that this encoder remains functional across diverse climatic conditions, whether in cold storage facilities or hot manufacturing plants.
Durability is further enhanced by its shock resistance capability of 20 g/11 ms and vibration resistance spanning frequencies from 58-500 Hz. Such specifications affirm the product's ability to maintain accurate performance even under mechanical stress or vibrations common in industrial settings.
For precision tasks, the device delivers with its pulses per revolution (PPR) count set at 500 PPR, allowing high-resolution feedback necessary for detailed motion analysis or control tasks. Its maximum shaft speed reaches up to 6000 RPM, supporting fast-paced operations without losing accuracy.
The shaft size stands at a standard 6 mm diameter, compatible with numerous couplings and mechanical setups found in industry-standard equipment. Connectivity is facilitated through a durable stainless steel construction complemented by a practical connector type featuring a 2-meter cable plus gland nut arrangement—ensuring secure connections over extended distances while resisting corrosion.
Overall, the technical features presented by the Series 958 make it an excellent candidate for professionals seeking dependable encoders that deliver consistent results across varied applications within challenging environments.
