Brand	PANASONIC
Ambient Temperature Range (°C)	–10 to +50
Applicable Fluid	Non-corrosive gas
Degree of Protection	IP40
Display Screen Type	LCD
Material	Body-PBT, Pressure ports-SS(SUS303), LCD display-Acrylic
Operating State/Fault Indication	Operation - Orange LED
Outputs	PNP open-collector transistor
Power Consumption (W)	0.72 (Normal operation )
Pressure Port	M5 female thread
Rated Pressure Range (kPa)	-100 to +100
Rated Supply Voltage DC (V)	12 - 24
Series	DP-100
Suitable For	For low pressure
Type	Standard
Type of Pressure	Gauge pressure
Weight (kg)	0.04

Pressure Sensors

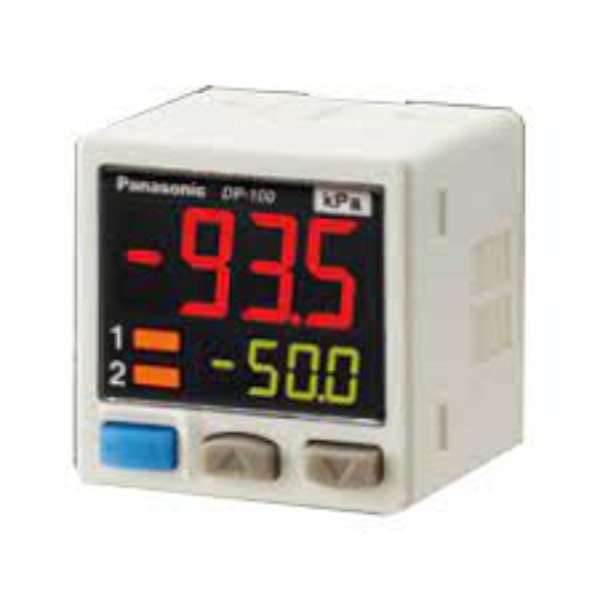

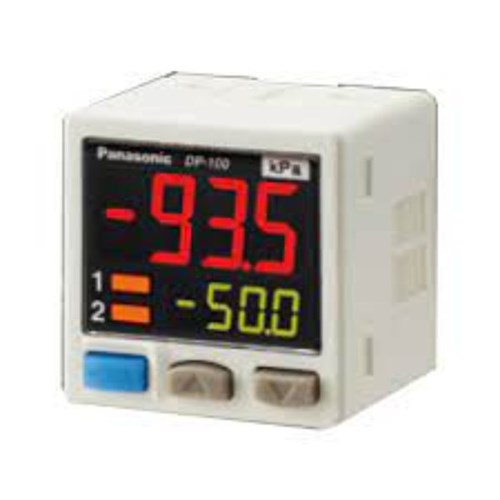

PANASONIC DUAL DISPLAY DIGITAL PRESSURE SENSOR, PNP DP-101-M-P
