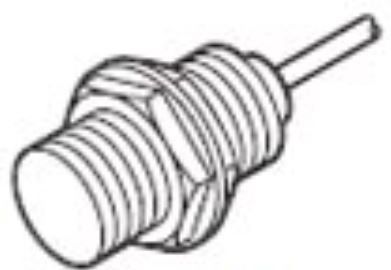

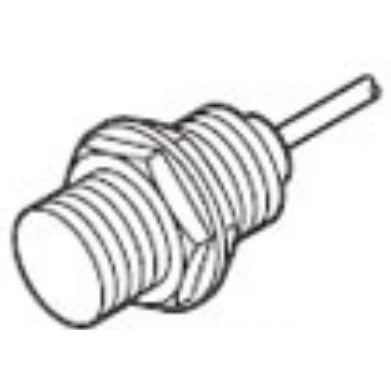

Panasonic GX-308M-A-N Cylindrical Inductive Proximity Sensor NO NPN-Output 2m L Cable

Product Code: GX-308M-A-N

  • Sensing range of 0-1.2 mm
  • Operates at 10-30 VDC, <16 mA
  • Durable nickel-plated brass housing
  • High protection: IP67, IP69K, IP67G
  • Wide temp range: -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Cylindrical Inductive Proximity Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type Standard
Degree of Protection IP67, IP69K, IP67G
Housing Material Nickel Plated Brass
Humidity 35-95%
Insulation Resistance 50 MOhm
Operational Temperature -40 to 85 deg C
Rated Current <16 mA
Rated Voltage 10-30 VDC
Relative Humidity 35 to 95%
Sensing Range 0-1.2 mm
Sensor Type Shielded
Shape Threaded type
Shock Resistance 1000 ms
Thread Size M8

Description

<p>The proximity sensor you&amp;#39;re considering is a robust and reliable choice for industrial and commercial applications. With its nickel-plated brass housing, it offers durability and resistance to harsh environments, ensuring longevity even in demanding conditions. The sensing range of 0-1.2 mm makes it ideal for precise detection tasks where accuracy is paramount.</p><p>Operating within a rated voltage of 10-30 VDC and consuming less than 16 mA of current, this sensor is energy efficient, suitable for integration into systems that require low power consumption. Its design accommodates varying humidity levels from 35% to 95%, making it versatile across different climate conditions.</p><p>One of the standout features is its high degree of protection: IP67, IP69K, and IP67G ratings ensure that the sensor can withstand exposure to dust, water immersion up to certain depths, and high-pressure cleaning. This makes it particularly useful in environments where hygiene or cleanliness is critical such as food processing or chemical industries.</p><p>The operational temperature range extends from -40&amp;#176;C to +85&amp;#176;C allowing the sensor to perform reliably in extreme cold or heat without compromising functionality. Additionally, the shock resistance rated at 1000 ms ensures stability against mechanical impacts or vibrations common in industrial settings.</p><p>With a cable length of 2 meters you have flexibility in installation positioning while maintaining connectivity integrity over distance. The insulation resistance of 50 MOhm further enhances safety by preventing electrical leakage which could otherwise affect performance.</p><p>Overall this proximity sensor combines precision with resilience offering an excellent solution for those seeking dependable performance under various environmental stresses without unnecessary complexity or cost overheads associated with more advanced models not needed for typical use cases found within this product&amp;#39;s specifications set boundaries.</p>
