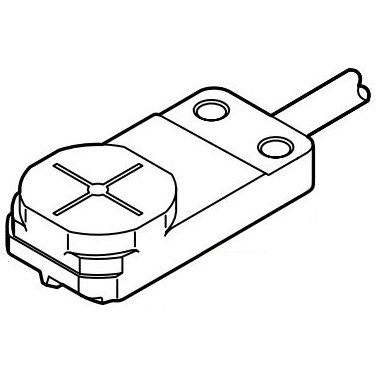

Panasonic GX-F15B Rectangular Inductive Proximity Sensor NC NPN-Output 1m L Cable

Product Code: GX-F15B

  • Sensing range up to 4.2 mm
  • Rated voltage: 12-24 VDC
  • Durable PBT housing
  • IP68 protection rating
  • Wide temp range: -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rectangular Inductive Proximity Sensor
Brand PANASONIC
Cable Length 1 m
Cable Type 3-core oil, heat and cold resistant cabtyre cable
Degree of Protection IP68, IP68G
Housing Material PBT
Humidity 35-95%
Insulation Resistance 50 MOhm
Operation Indicator Orange LED ON
Operational Temperature -40 to 85 deg C
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 95%
Sensing Range 0-4.2 mm
Sensor Type Front Sensing
Shock Resistance 10000 ms
Utilisation Category DC-12 or DC-13
Weight 20 g

Description

<p>When you&amp;#39;re in the industrial or commercial sector, selecting the right proximity sensor is crucial for ensuring efficient and reliable operations. This particular proximity sensor offers a robust set of features tailored to meet demanding applications.</p><p>With a sensing range of 0-4.2 mm, this sensor is well-suited for precise detection tasks where accuracy is paramount. It operates efficiently within a rated voltage range of 12-24 VDC and consumes less than 15 mA, making it an energy-efficient choice for various automation systems.</p><p>The housing material is crafted from PBT (Polybutylene Terephthalate), known for its durability and resistance to environmental stressors. This ensures that the sensor can withstand challenging conditions without compromising performance. The device boasts an impressive degree of protection with ratings of IP68 and IP68G, highlighting its resilience against dust ingress and water immersion, even under pressure.</p><p>Operating reliably in temperatures ranging from -40 to 85 degrees Celsius, this proximity sensor can endure extreme weather conditions typical in many Australian industrial settings. Its humidity tolerance spans from 35% to 95%, allowing it to function optimally across diverse environments.</p><p>Weighing just 20 grams, the lightweight design facilitates easy installation without adding significant load to existing setups. The shock resistance capability extends up to 10,000 ms, providing assurance against mechanical shocks commonly encountered in dynamic operational environments.</p><p>For ease of integration into your systems, the sensor includes a cable length of one meter—adequate for most installations while maintaining flexibility during setup. Insulation resistance stands at an impressive 50 MOhm, ensuring minimal leakage current and enhancing overall safety.</p><p>An orange LED operation indicator provides immediate visual feedback when the device is active—a practical feature that simplifies troubleshooting processes on-site by offering clear status updates at a glance.</p><p>This combination of features makes this proximity sensor a reliable component for businesses seeking precision and durability in their automation solutions.</p>
