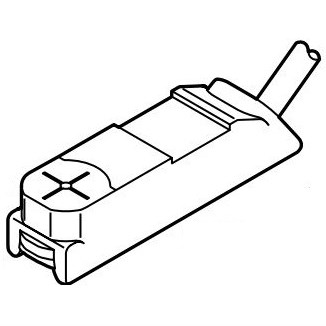

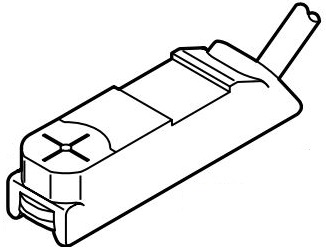

Panasonic GX-F6A-P Rectangular Inductive Proximity Sensor NO PNP-Output 1m L Cable

Product Code: GX-F6A-P

  • Compact design with 0-1.3 mm sensing range
  • Operates on 12-24 VDC, under 15 mA
  • Durable PBT housing, IP68 protection
  • Wide temp range: -40 to 85°C
  • Orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rectangular Inductive Proximity Sensor
Brand PANASONIC
Cable Length 1 m
Cable Type 3-core oil, heat and cold resistant cabtyre cable
Degree of Protection IP68, IP68G
Housing Material PBT
Humidity 35-95%
Insulation Resistance 50 MOhm
Operation Indicator Orange LED ON
Operational Temperature -40 to 85 deg C
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 95%
Sensing Range 0-1.3 mm
Sensor Type Front Sensing
Shock Resistance 10000 ms
Utilisation Category DC-12 or DC-13
Weight 15 g

Description

<p>The proximity sensor in question is a reliable and robust choice for industrial and commercial applications, offering precision and durability. Designed with a sensing range of 0 to 1.3 mm, it provides accurate detection capabilities suitable for various automation environments.</p><p>Operating on a rated voltage between 12-24 VDC and consuming less than 15 mA of current, this sensor ensures energy efficiency without compromising performance. The housing material made from PBT (Polybutylene Terephthalate) contributes to its resilience against environmental factors, ensuring longevity even under challenging conditions.</p><p>With an impressive degree of protection rated at IP68 and IP68G, the sensor is well-equipped to withstand dust ingress and continuous immersion in water. This makes it ideal for use in environments where moisture or particulate matter could be an issue. Moreover, the operational temperature range from -40 to 85 degrees Celsius allows it to function reliably across extreme temperatures.</p><p>The product&amp;#39;s shock resistance rating of 10000 ms ensures that it can endure mechanical impacts without affecting its functionality. This feature is particularly advantageous in high-vibration settings where stability is crucial.</p><p>For ease of installation, the sensor comes with a cable length of 1 meter, providing flexibility for integration into existing systems. It also features an orange LED operation indicator that lights up when active, allowing users to quickly determine its status at a glance.</p><p>In terms of electrical safety, the insulation resistance stands at 50 MOhm, which enhances its reliability by preventing unwanted current flow between conductive parts.</p><p>Weighing just 15 grams, this proximity sensor combines lightweight design with robust performance characteristics. Its humidity tolerance ranging from 35% to 95% further supports its versatility across different environmental conditions.</p><p>Overall, this proximity sensor offers a comprehensive suite of features tailored for demanding industrial applications where precision and durability are paramount.</p>
