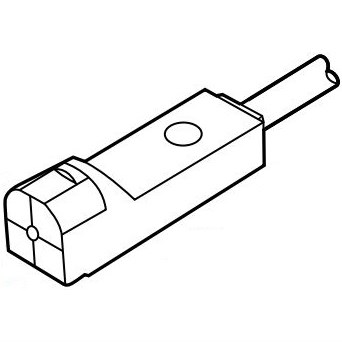

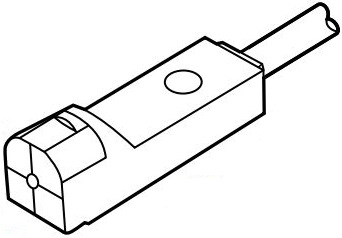

Panasonic GX-H8A Rectangular Inductive Proximity Sensor NO NPN-Output 1m L Cable

Product Code: GX-H8A

  • Sensing range: 0-2.1 mm
  • Voltage: 12-24 VDC, Current: <15 mA
  • Durable PBT housing, IP68/IP68G rated
  • Operates in -40 to 85°C environments
  • Orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rectangular Inductive Proximity Sensor
Brand PANASONIC
Cable Length 1 m
Cable Type 3-core oil, heat and cold resistant cabtyre cable
Degree of Protection IP68, IP68G
Housing Material PBT
Humidity 35-95%
Insulation Resistance 50 MOhm
Operation Indicator Orange LED ON
Operational Temperature -40 to 85 deg C
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 95%
Sensing Range 0-2.1 mm
Sensor Type Top Sensing
Shock Resistance 10000 ms
Utilisation Category DC-12 or DC-13
Weight 20 g

Description

<p>In the realm of industrial automation, precision and reliability are paramount. The Proximity Sensor in question is designed to meet these exacting standards, providing dependable performance for a variety of applications. With a sensing range of 0-2.1 mm, this sensor is ideal for detecting objects within close proximity, ensuring precise operation in environments where accuracy is non-negotiable.</p><p>Operating on a rated voltage between 12-24 VDC and consuming less than 15 mA, this sensor offers energy efficiency without compromising on functionality. Its robust housing made from PBT (Polybutylene Terephthalate) ensures durability and resistance to environmental factors, making it suitable for harsh conditions.</p><p>The sensor&amp;#39;s operational temperature range spans from -40 to 85 degrees Celsius, allowing it to function effectively in both extreme cold and heat. This flexibility makes it a versatile choice across different industries and geographical locations. Additionally, with an IP68/IP68G degree of protection, the sensor is fully protected against dust ingress and can withstand immersion in water beyond one meter depth continuously.</p><p>Humidity tolerance between 35% to 95% ensures that the sensor operates reliably even in moist environments—a common requirement in many industrial settings. The shock resistance rating of 10,000 ms further underscores its resilience against mechanical stresses or impacts that might occur during operation.</p><p>With an insulation resistance of 50 MOhm, this device guarantees safe operation by minimizing electrical leakage risks. An orange LED indicator provides clear visual confirmation when the sensor is active—an essential feature for maintenance personnel who need immediate feedback on system status.</p><p>Weighing just 20 grams with a cable length of one meter, installation is straightforward without adding unnecessary bulk or complexity to your setup. This combination of features ensures that the Proximity Sensor not only meets but exceeds typical industry expectations for reliability and efficiency.</p><p>For professionals seeking a reliable solution that combines advanced technical specifications with practical usability under challenging conditions, this Proximity Sensor stands out as an optimal choice tailored to meet rigorous demands consistently over time.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
