Brand	PULS
AC Input Type	Wide-range
Conformal Coating	No
Connection Type	Screw terminals
Country of Origin	Czech Republic
Customs Tariff Number	85044083
DC-OK Signal	Yes
Degree of Protection	IP20
Derating	2.4 W/°C
Derating Temperature (°C)	+60 to +70
Dimensions (mm)	36W x 90H x 91D
E Classification	E-CS01
Efficiency	93.80%
External Input Fuse Recommendation	B-6 A / C-4 A
Family	PIANO
Hold Up Time (ms)	119
Input Inrush Current (A)	18 / 40
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Mounting Type	DIN Rail
Output Current Range (A)	3.8 - 3.2
Output Power (W)	90
Output Voltage (V)	24-28
Power Loss (W)	6
Range	PIANO
Rated Current (A)	3.8
Series	PIM series
Standards and Approvals	EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Use In Crosslinking	Yes
Warranty Period (Months)	36
Weight (g)	270

Industrial Power Supplies

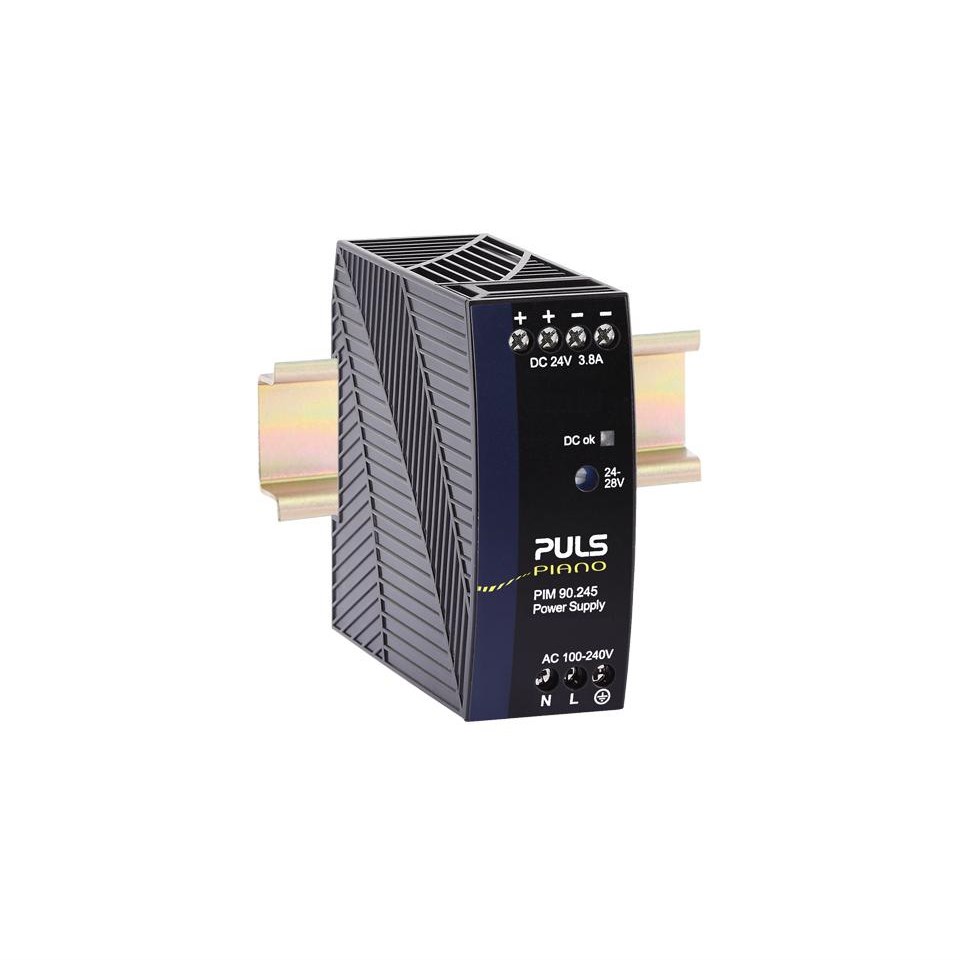

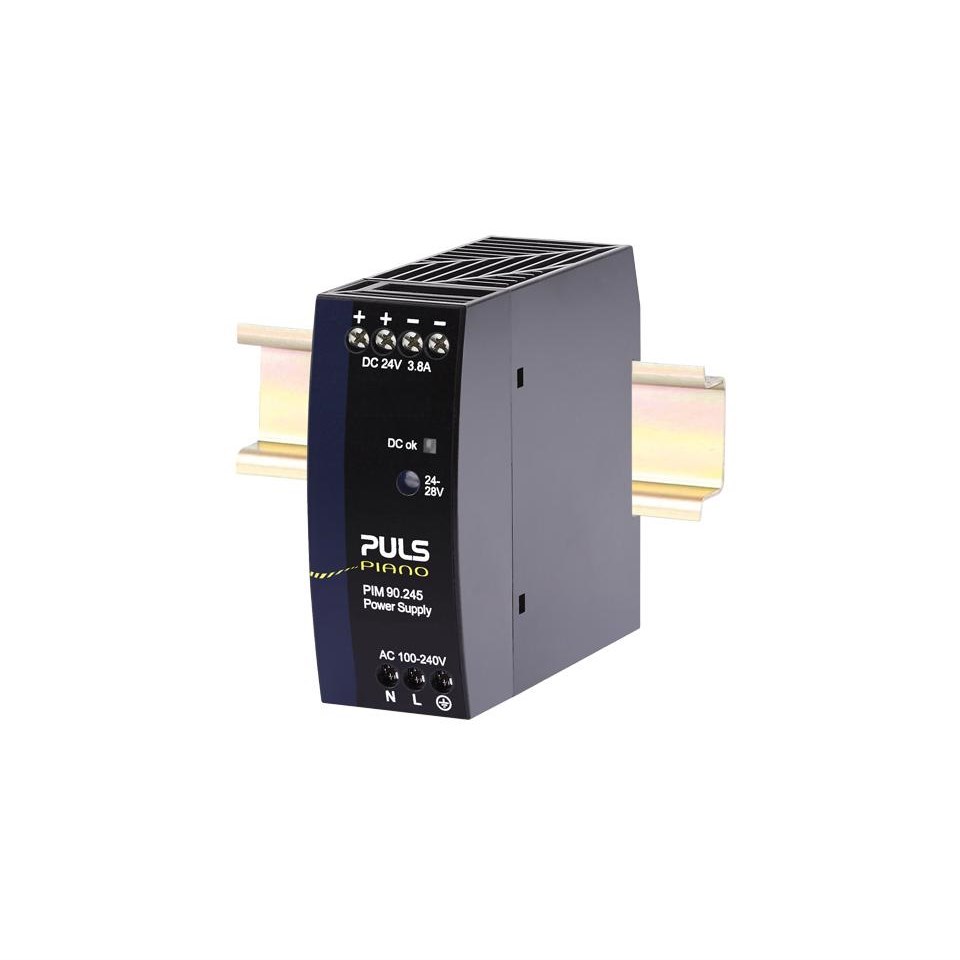

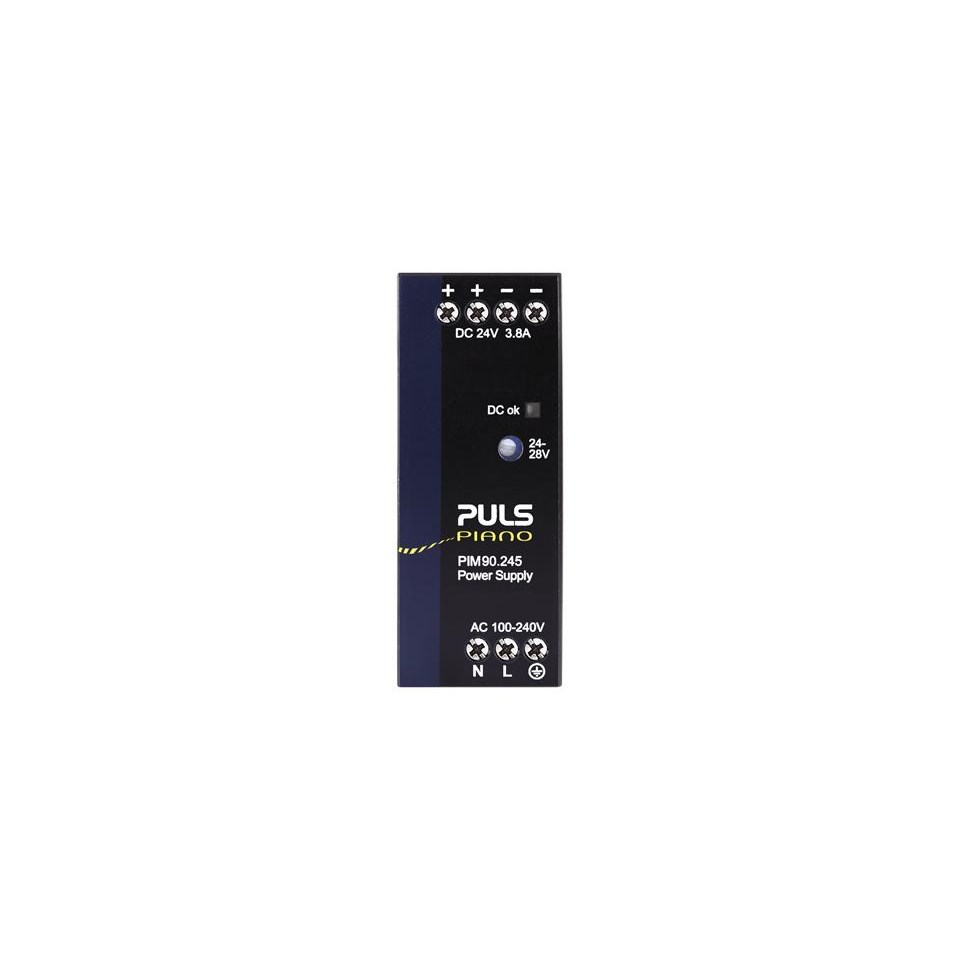

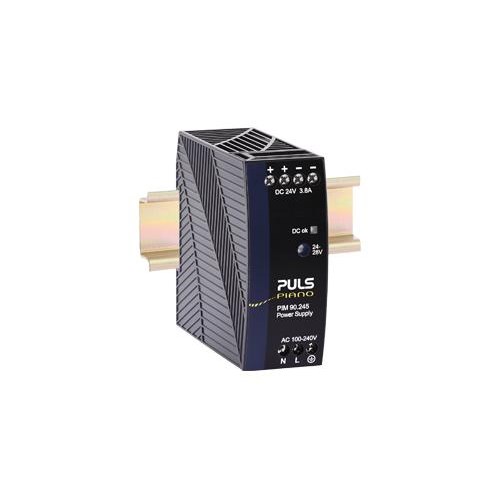

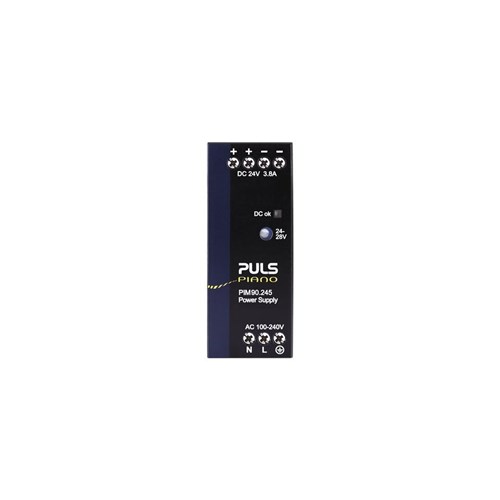

PULS DIN RAIL POWER SUPPLY 1 PHASE 24V 3.8A 90W PIM90.245
