Remove	Yes
Brand	DELTA
Battery Charge Current (A)	15 (Max inbuilt)
Battery Charge Voltage DC (V)	±272 (adjustable from 204 V to 312 V)
Battery Nominal Voltage DC (V)	±240 (default, ±180 ±276 configurable)
Communication Interface	External battery temperature detection x1, Output dry contact x4, Input dry contact x2, Parallel port x2, USB Port x1, RS232 Port x1, REPO Port x1, Mini Slot x2
Degree of Protection	IP20 (Standard), IP42 (Optional for long backup model)
Dimensions (mm)	240 W x 630 D x 650 H
Humidity	0-95% (non-condensing)
Input Frequency Range (Hz)	40-70
Noise Level (dBA)	< 50
Nominal Voltage AC (V)	220/380, 230/400, 240/415
Operational Temperature Range (°C)	0-40°
Output Frequency Range (Hz)	50/60
Output Voltage AC (V)	220/380, 230/400, 240/415 (3-phase, 4-wire + G)
Power Rating (W)	20kVA
Series	HPH
Voltage Range AC (V)	305-478 (full load), 228-478 (70% load)
Weight (kg)	44

Uninterruptible Power Supplies (UPS)

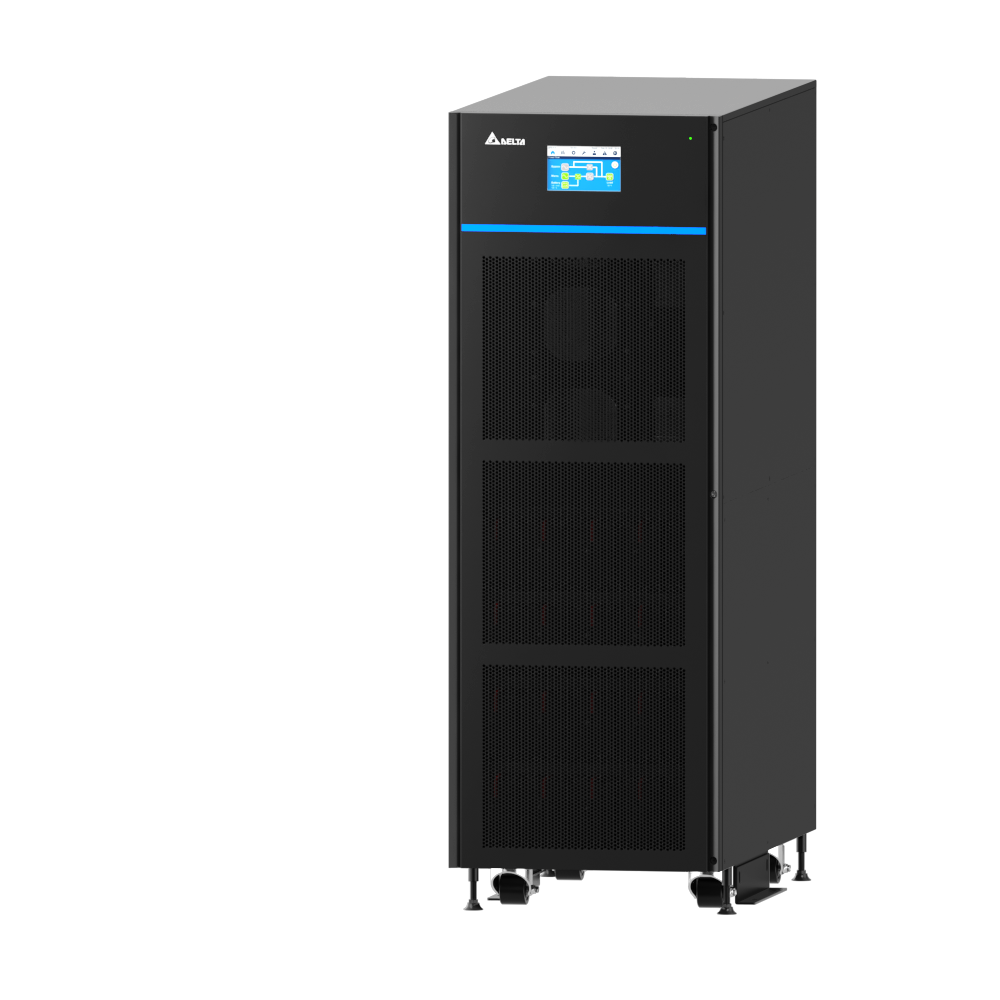

DELTA HPH 20 KVA/20 KW GEN 2 MONOBLOCK NO INTERNAL BATTERIES UPS203HH33N035
