Specifications

Product Type	Emergency Light
Brand	RP-Group
Series	ILD
Degree of Protection	IP40
Diameter	100 mm
Height	36 mm
Housing Material	Polycarbonate
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Weight	0.19 Kg
Backup Supply	Self-contained
Battery	LiFePO4 3,2 V/3,0 Ah
Battery connection	Connector
Weight incl. packaging	0.23 Kg
Bridging time	3 h
Certification	WEEE, CE, 5 years warranty
Switching input	Yes
Connection cross-section	2.5 mm²
Dimming function	Yes
Emergency light blocking	No
Housing color	White
IK Rating	≥ 3
Illuminant	LED
Luminous flux emergency	250 lm
Luminous flux mains	130 lm
Monitoring	SelfControl (SC)
Mounting	Ceiling mounting
Operating mode	Non-maintained / maintained
Operating temperature maintained mode	-5 °C to 40 °C
Power non-maintained	0.2 W
Power max.	3 W
Operating temperature non-maintained mode	-5 °C to 40 °C
Power maintained	1.9 W

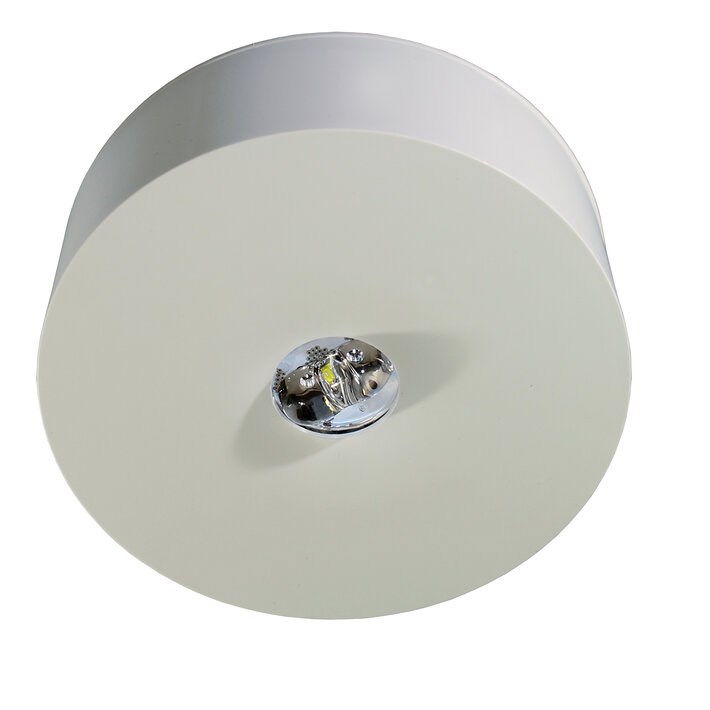

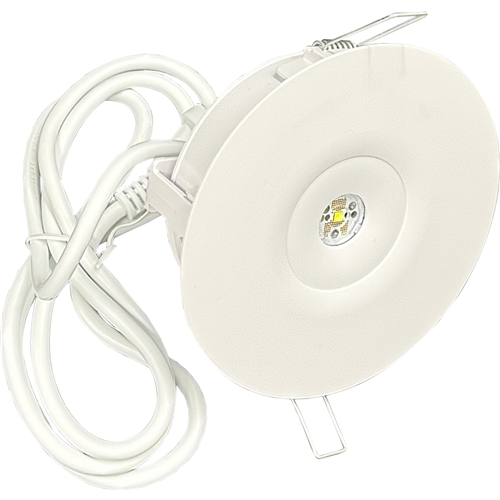

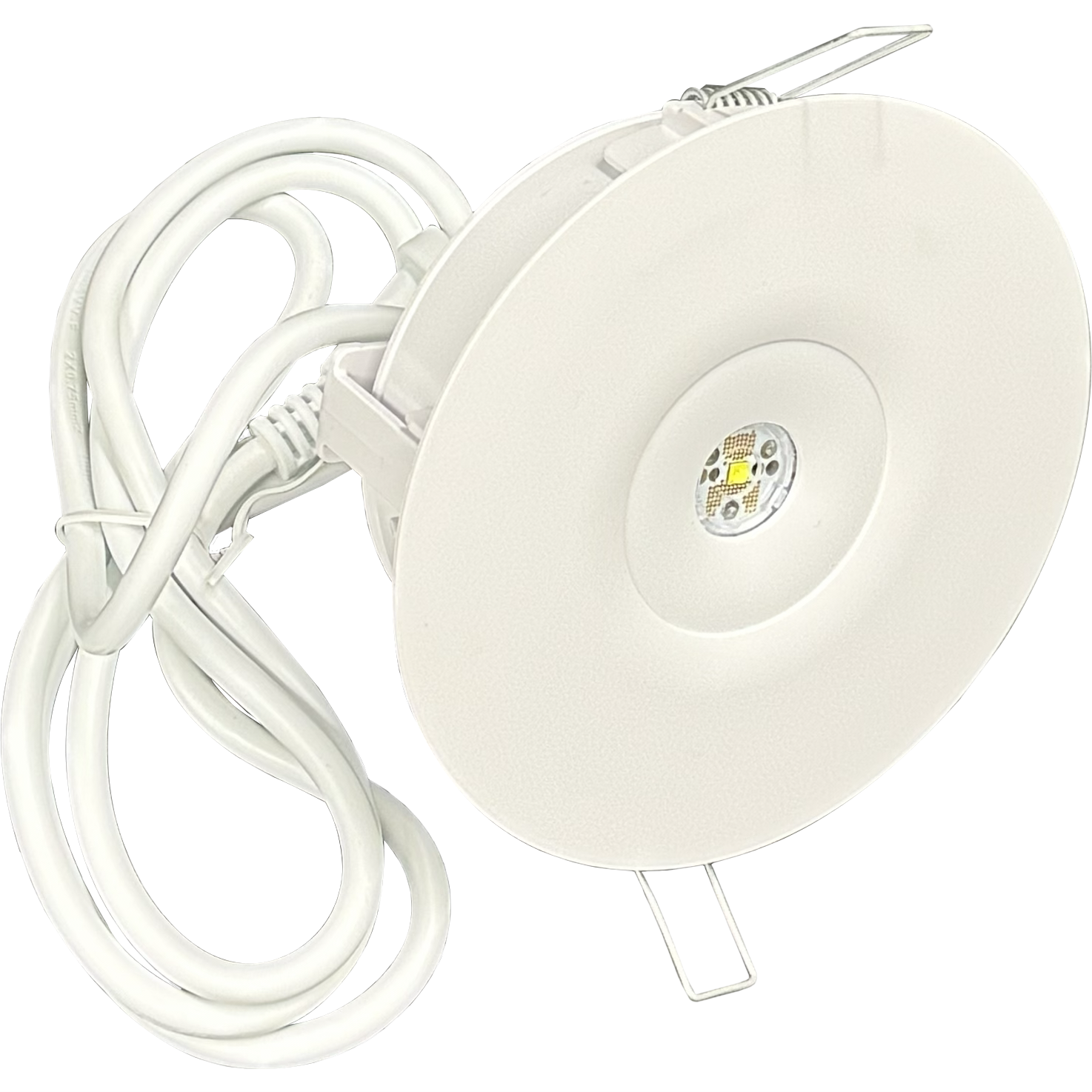

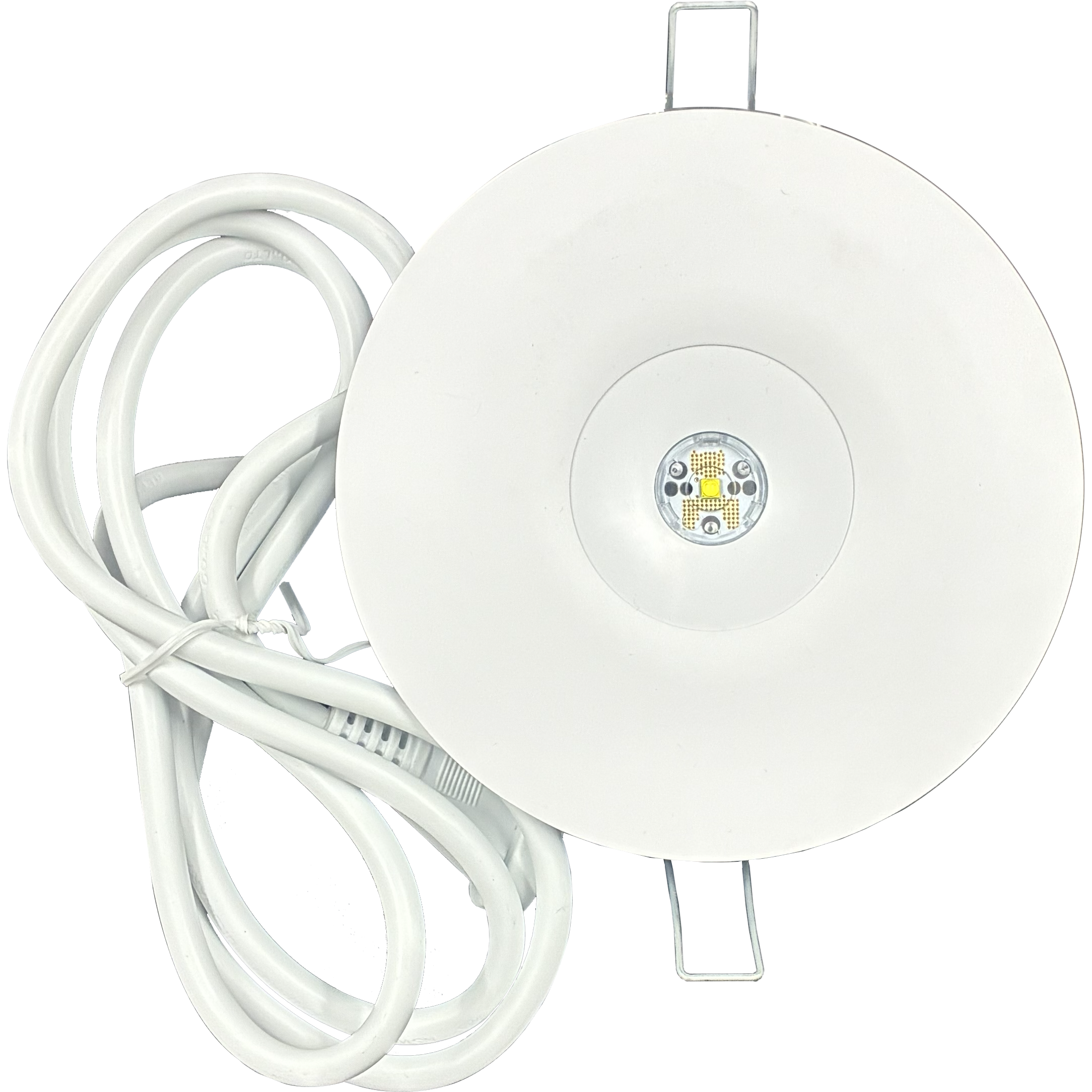

RP-Group ILDL423SC-ANZ-ILDE Emergency Light Self-Control with Recessed Mount Bracket 3-hour Battery IP40 White Polycarbonate Housing
