Specifications

Product Type	Exit Sign
Brand	RP-Group
Series	KMU
Degree of Protection	IP43
Depth	34 mm
Height	174 mm
Housing Material	Polycarbonate
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Weight	0.42 Kg
Width	250 mm
Backup Supply	Self-contained
Battery	LiFePO4 3,2 V/1,6 Ah
Battery connection	Connector
Weight incl. packaging	0.52 Kg
Bridging time	3 h
Certification	WEEE, CE, 5 years warranty
Switching input	Yes
Connection cross-section	2.5 mm²
Dimming function	No
Emergency light blocking	No
Housing color	White
IK Rating	3
Illuminant	LED
Recognition distance	24 m
Luminous flux emergency	190 lm
Luminous flux mains	190 lm
Monitoring	Wireless Basic (WB)
Mounting	Universal
Operating mode	Non-maintained / maintained
Operating temperature maintained mode	-5 °C to 35 °C
Power non-maintained	1.5 W
Power max.	5.3 W
Operating temperature non-maintained mode	-5 °C to 35 °C
Pictograph	Set
Power maintained	3.9 W

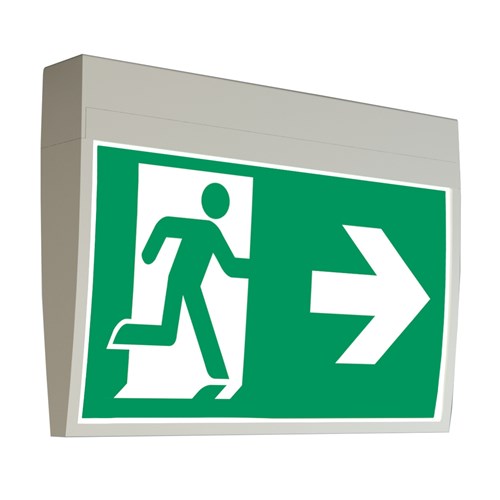

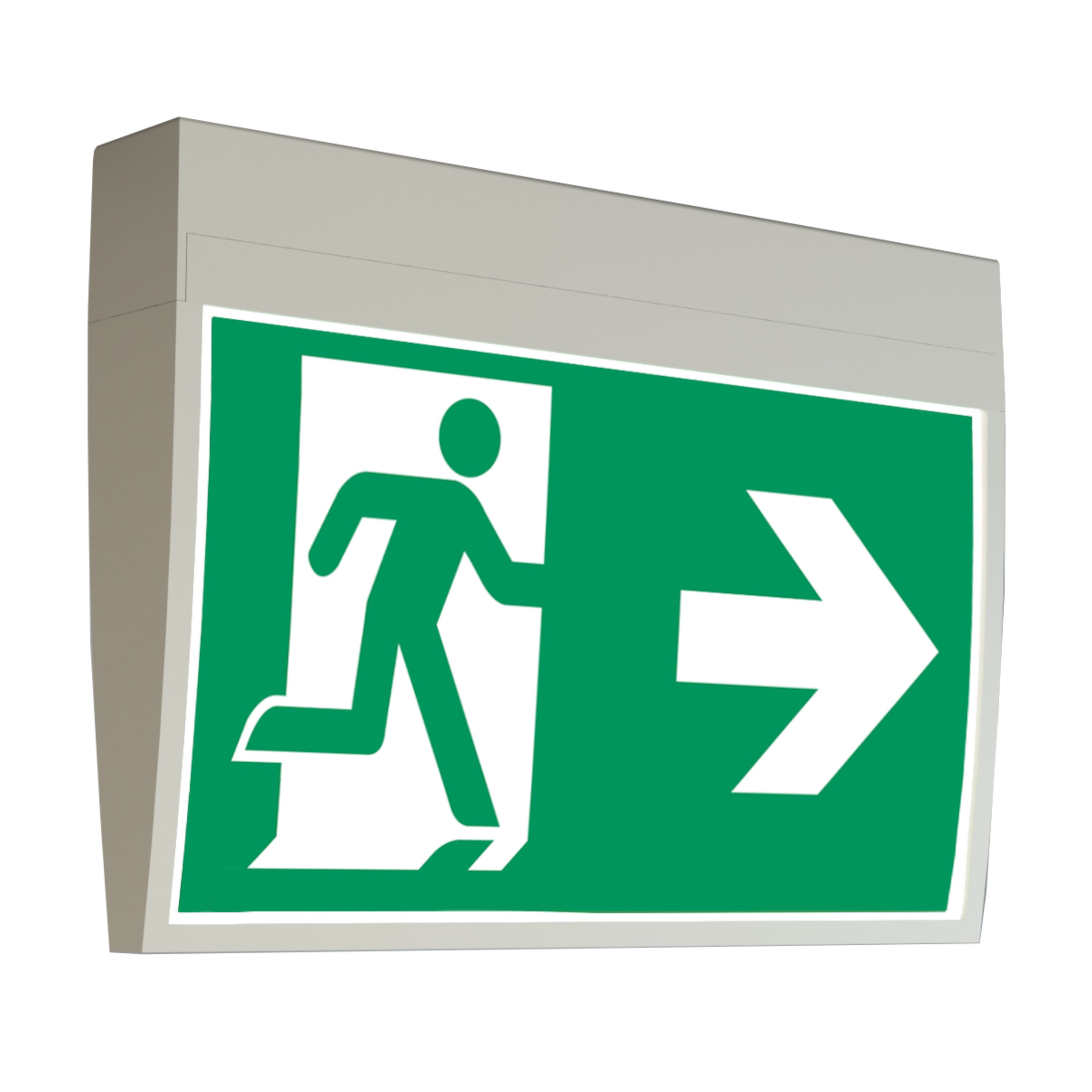

RP-Group KMU413WB-ANZ Exit Sign Wireless-Basic Universal Mounting with 3-hour Battery and 16m Viewing Distance IP43 White Polycarbonate Housing
