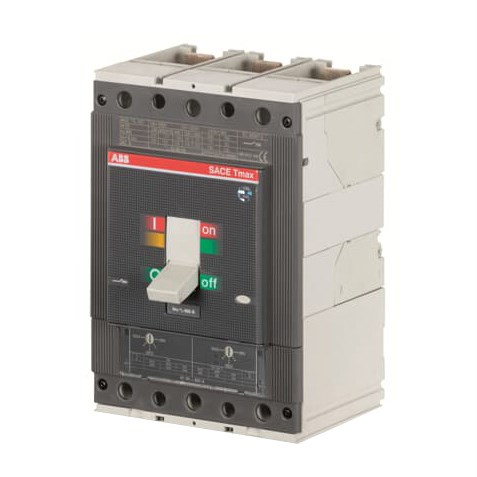

<p>When selecting a reliable circuit breaker for industrial or commercial applications, the T5 Frame stands out as a robust choice. Tailored to meet demanding operational requirements, this device is engineered with precision and efficiency in mind.</p><p>The T5 Frame is designed to handle a rated current of 320 A, making it suitable for various medium-duty applications. With its impressive rated impulse withstand voltage of 8 kV, this breaker can effectively manage transient overvoltages that are common in electrical systems. Additionally, its rated insulation voltage of 1000 V provides an extra layer of safety and durability.</p><p>This model operates efficiently at both AC and DC voltages, with ratings up to 690/750 VAC/VDC respectively. Such versatility ensures compatibility across different power systems without compromising performance or safety standards.</p><p>One notable feature is its thermal magnetic (TM) release type paired with a TMA trip unit. This combination offers dependable protection by promptly responding to overloads and short circuits while ensuring minimal disruption to operations. The breaking capacity stands at a solid 20 kA, providing assurance that the system can safely interrupt fault currents when necessary.</p><p>In terms of design specifics, the T5 Frame boasts three poles and utilizes front connection types for ease of installation and maintenance. Its compact width of 140 mm allows for seamless integration into existing panels without necessitating extensive modifications.</p><p>Energy efficiency is also considered with a power loss rating of just 13.6 W, helping maintain lower operating costs over time—a critical factor in industrial settings where energy consumption directly impacts bottom lines.</p><p>Compliance with IEC 309 standards underscores its credibility and assures users that this product aligns with international safety norms. Weighing in at approximately 4.494 kg, it strikes a balance between sturdiness and manageability during installation processes.</p><p>For those already utilizing compatible systems like the T5N series, the T5 Frame serves as an ideal component due to its suitability for integration within these setups—ensuring seamless operation across interconnected devices.</p><p>Finally, it features a test voltage rating of 3500 V which facilitates rigorous testing protocols ensuring reliability under diverse conditions before deployment into service environments.</p><p>Overall, whether you&#39;re upgrading existing installations or designing new ones from scratch—the technical attributes coupled with compliance credentials make the T5 Frame an astute choice among professionals seeking quality without compromise in their electrical infrastructure solutions.</p>
