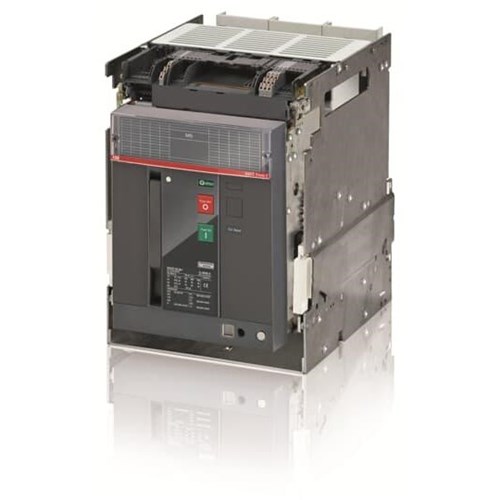

<p>When it comes to selecting a reliable and robust non-automatic air circuit breaker (ACB) for your industrial or commercial needs, understanding the technical specifications is crucial. This non-automatic ACB is engineered to meet demanding requirements with precision and efficiency, ensuring optimal performance in various applications.</p><p>The unit boasts a substantial rated current of 1600 A, making it suitable for handling high-power demands. It operates effectively within a rated voltage of 690 VAC, providing flexibility across diverse electrical systems. The breaker is designed to withstand an impressive rated impulse voltage of 12 kV and has a rated insulation voltage of 1000 V. These features ensure enhanced safety and durability under challenging conditions.</p><p>In terms of energy efficiency, this ACB demonstrates a power loss of 288 W. While maintaining operational integrity, it minimizes unnecessary energy consumption—a factor that can contribute significantly to cost savings over time.</p><p>Structurally, the breaker features three poles and provides an IP30 degree of protection. This means it&#39;s adequately protected against solid objects greater than 2.5 mm but not against water ingress—an essential consideration when planning installation environments.</p><p>Dimensions play a critical role in fitting equipment into existing setups without extensive modifications. With its width at 317 mm, height at 425 mm, and depth at 383 mm, this non-automatic ACB offers compactness without compromising on capability or safety standards.</p><p>Weighing in at 48 kg, this unit strikes a balance between sturdiness and manageability during installation or maintenance procedures—a practical aspect for engineers working onsite.</p><p>Compliance with IEC 309 standards further underscores the product&#39;s reliability and adherence to international quality benchmarks—making it an ideal choice for professionals seeking dependable solutions that align with global industry practices.</p><p>This comprehensive overview should assist you in determining whether these specifications align with your project&#39;s technical requirements while ensuring seamless integration into your existing systems without unnecessary complications or adjustments.</p>
