Specifications

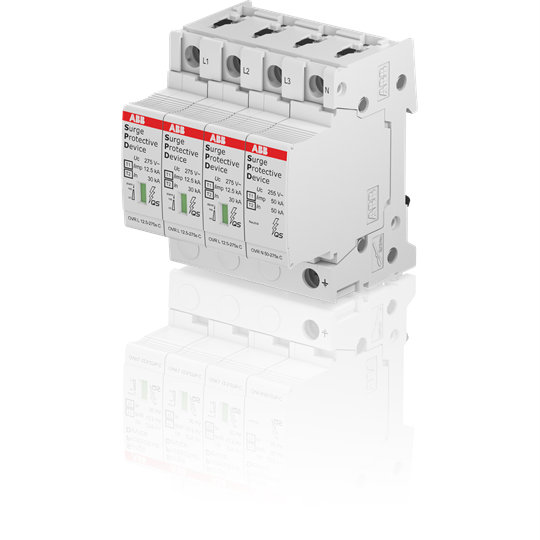

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Lightning Impulse Current Iimp (10/350µs)	12.5 kA
Suitable for	Protect The Systems Against The Transient Overvoltage (Lightning)
Power Loss	63 mW
Rated Current	80 kA
Rated Short Circuit Current	100 kA
Rated Voltage	230/400 V
Type	Plug-in
Voltage Protection Level Up	1.4 kV
Mounting Type	DIN Rail
Depth	76.7 mm
Height	88 mm
Weight	0.6 kg
Width	71.2 mm
IP Rating	IP20
