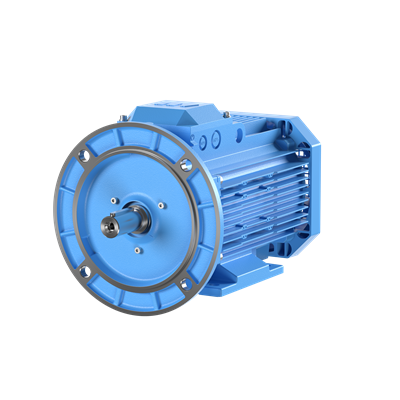

ABB 3GAA082315-HSE Low Voltage Motor IEC 80 Aluminium 4P 3PH 0.75kW 400V Foot Large Flange Mounting IP55

Product Code: 3GAA082315-HSE

  • Durable aluminium construction
  • IP55 protection for harsh environments
  • Efficient 79.8% performance
  • Operates at 1425 RPM speed
  • Suitable for both rotation directions
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed Process Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 292.5 mm
Efficiency 79.8%
Frame Size IEC 80
Height 193.5 mm
Insulation Class ICLF
Material Aluminium
Mounting Type Foot, Large Flange
Number of Poles 4
Phase 3
Power Factor 0.72
Rated Current 1.88 A
Rated Frequency 50 Hz
Rated Power 0.75 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 54 dBA
Speed Rating 1425 RPM
Torque Rating 5 N-m
Weight 15 kg
Width 154 mm

Description

<p>When considering a robust accessory for your industrial or commercial application, this product offers a compelling mix of technical specifications and practical design. Built to handle demanding environments, it operates at a rated voltage of 400 V and supports a current of 1.88 A with an efficiency rating of 79.8%. This makes it suitable for operations where energy efficiency is crucial.</p><p>The unit is designed to operate at a frequency of 50 Hz and can withstand ambient temperatures up to 40&amp;#176;C, ensuring reliable performance in various Australian climates. With an IP55 degree of protection, the product is well-guarded against dust ingress and water jets from any direction, enhancing its durability in challenging conditions.</p><p>Its construction features a sturdy aluminium frame, adhering to the IEC 80 size standard. The foot and large flange mounting options provide flexibility during installation across different setups. Measuring 154 mm in width, 193.5 mm in height, and extending to a depth of 292.5 mm while weighing approximately 15 kg, this accessory balances compactness with significant operational capability.</p><p>Aesthetically finished in Munsell Blue, it not only serves functionality but also integrates seamlessly into modern industrial settings. Its sound level is maintained at a low threshold of 54 dBA—ideal for environments where noise reduction is prioritized.</p><p>With a rated power output of 0.75 kW and torque rating standing at an impressive 5 N-m, the device delivers substantial mechanical power suitable for various applications requiring consistent rotational force. It boasts the ability to rotate both sides at speeds reaching up to 1425 RPM—a feature that adds versatility depending on your specific needs.</p><p>The insulation class ICLF further ensures safe operation by providing adequate electrical insulation under normal operating conditions. Additionally, with a power factor of 0.72, this product effectively manages reactive power flow within systems optimizing overall energy consumption.</p><p>In summary, this accessory combines reliability with performance suited for industries looking for high-quality components that deliver on promise without unnecessary frills or complications—an essential consideration when aligning equipment capabilities with business objectives efficiently.</p>
