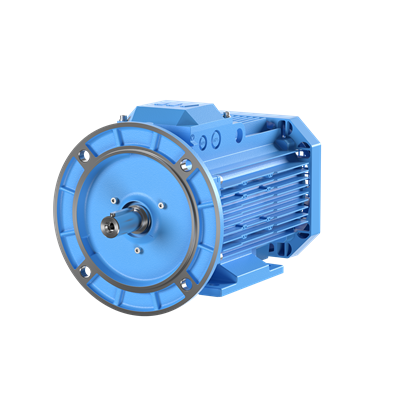

ABB 3GAA091520-HSE Low Voltage Motor IEC 90 Aluminium 2P 3PH 2.2kW 400V Foot Large Flange Mounting IP55

Product Code: 3GAA091520-HSE

  • Rated for 400 V, 4.4 A, and 50 Hz operations
  • IP55 protection ensures durability
  • Compact size: 177x217x309.5 mm
  • Efficient aluminium build with IEC 90 frame
  • Operates at a low sound level of 63 dBA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed Process Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 309.5 mm
Efficiency 86.1%
Frame Size IEC 90
Height 217 mm
Insulation Class ICLF
Material Aluminium
Mounting Type Foot, Large Flange
Number of Poles 2
Phase 3
Power Factor 0.86
Rated Current 4.4 A
Rated Frequency 50 Hz
Rated Power 2.2 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 63 dBA
Speed Rating 2870 RPM
Torque Rating 7.3 N-m
Weight 18 kg
Width 177 mm

Description

<p>When it comes to selecting the right accessory for your industrial or commercial setup, understanding the technical specifications is crucial. This product stands as a reliable choice, offering robust performance and efficiency suitable for various applications within its lifecycle.</p><p>Operating at a rated voltage of 400 V and a current of 4.4 A, this accessory functions efficiently at a frequency of 50 Hz. It provides a considerable rated power output of 2.2 kW, making it well-suited for demanding tasks. The unit&amp;#39;s power factor is set at 0.86, ensuring optimal energy utilization during operation.</p><p>Designed with durability in mind, it boasts an IP55 degree of protection, safeguarding against dust ingress and water jets from any direction—ideal for challenging environments. The construction material is aluminium, contributing to its moderate weight of 18 kg while ensuring strength and resistance to corrosion.</p><p>In terms of dimensions, it measures 177 mm in width, 217 mm in height, and has a depth of 309.5 mm—compact enough for versatile mounting options including foot or large flange setups. Its frame size adheres to IEC standards at size 90.</p><p>The product&amp;#39;s sound level is maintained at a manageable 63 dBA, which ensures minimal noise pollution in your workspace—a significant consideration for maintaining workplace comfort without compromising on performance.</p><p>Efficiency stands out as one of its key features with an impressive rate of 86.1%. Coupled with a torque rating of 7.3 N-m and speed capability up to 2870 RPMs, this accessory delivers both power and precision across operations requiring high rotational speeds.</p><p>Its ability to rotate in both directions adds flexibility in application settings where bidirectional movement might be necessary. The insulation class ICLF further enhances safety by providing adequate electrical insulation under standard operating conditions.</p><p>Finally, the product presents itself aesthetically pleasing with its Munsell Blue finish—a subtle yet professional touch that complements industrial environments seamlessly while maintaining functionality even at ambient temperatures up to 40&amp;#176;C.</p><p>Overall this accessory combines efficiency with versatility wrapped up in durable design elements meeting industry standards effectively without unnecessary frills or complications making it an ideal choice when reliability matters most on site.</p>
