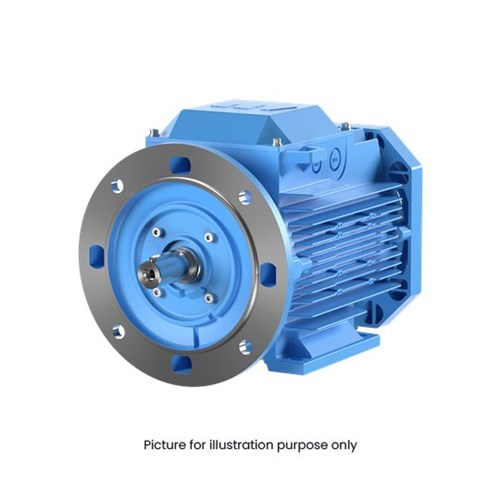

ABB 3GBA081340-HSD Low Voltage Motor IEC 80 Cast Iron 2P 3PH 1.1kW 400V Foot Large Flange Mounting IP66

Product Code: 3GBA081340-HSD

  • Rated power of 1.1 kW for reliable performance
  • IP55 protection for dust and water resistance
  • Cast iron construction ensures durability
  • Dual mounting: Foot or large flange options
  • Operates at a speed of 2860 RPM
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 309 mm
Efficiency 82.7%
Frame Size IEC 80
Height 192 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type Foot, Large Flange
Number of Poles 2
Phase 3
Power Factor 0.84
Rated Current 2.29 A
Rated Frequency 50 Hz
Rated Power 1.1 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 60 dBA
Speed Rating 2860 RPM
Torque Rating 3.7 N-m
Weight 17 kg
Width 154 mm

Description

<p>When it comes to selecting a reliable motor for industrial and commercial applications, the General Performance Motor stands out as a robust choice. Designed to meet the demands of various environments, this motor offers an impressive blend of performance and durability.</p><p>Operating at a rated voltage of 400 V and frequency of 50 Hz, this motor delivers consistent power with a rated current of 2.29 A. It boasts an output power of 1.1 kW, making it suitable for tasks requiring moderate energy input. With an efficiency rating of 82.7%, it ensures optimal energy usage while minimizing operational costs.</p><p>Constructed from durable cast iron, the motor is built to withstand challenging conditions and extend longevity. Its IP55 degree of protection further enhances its resilience by safeguarding against dust ingress and water jets from any direction—ideal for diverse industrial settings.</p><p>The motor&amp;#39;s dimensions are compact yet substantial: with a width of 154 mm, height of 192 mm, and depth measuring 309 mm, it fits seamlessly into existing setups without compromising on space or performance. Weighing in at 17 kg, it&amp;#39;s manageable during installation while still providing sturdy operation.</p><p>Designed with versatility in mind, the mounting options include both foot and large flange types, allowing easy integration into different systems. The IEC frame size is set at 80—a standard that assures compatibility across various equipment specifications.</p><p>Functionality extends beyond mere numbers; the sound level is maintained at a comfortable 60 dBA ensuring quieter operations in noise-sensitive environments. Additionally, its ambient temperature tolerance up to 40&amp;#176;C makes it adaptable under warmer conditions without affecting performance integrity.</p><p>The motor&amp;#39;s torque rating stands at an efficient 3.7 N-m coupled with a speed rating reaching up to 2860 RPM—offering swift response times necessary for dynamic applications where precision matters most.</p><p>Flexibility in use is enhanced by its ability to rotate in both directions which broadens its application scope significantly—from conveyors to pumps or compressors where directional change might be required during processes.</p><p>Lastly but importantly—the insulation class ICLF provides assurance regarding safety standards adhered within manufacturing practices contributing towards prolonged service life under varied electrical loads experienced during normal operations</p><p>In summary—a dependable general-purpose solution engineered meticulously balancing technical proficiency alongside practical utility aimed squarely addressing needs faced daily across industries reliant upon consistent mechanical outputs delivered efficiently over time all encased aesthetically pleasing Munsell Blue finish reflecting quality synonymous trusted machinery worldwide</p>
