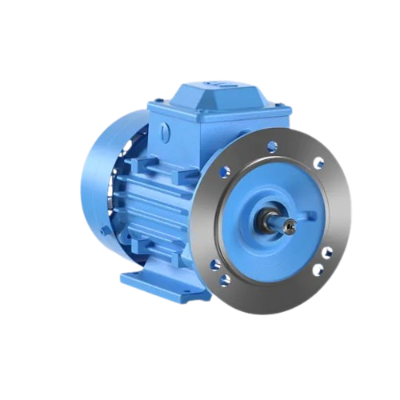

ABB 3GBA093010-HSD Low Voltage Motor IEC 90 Cast Iron 6P 3PH 0.75kW 400V Foot Large Flange Mounting IP55

Product Code: 3GBA093010-HSD

  • 0.75 kW motor with 78.9% efficiency
  • IP55 protection for harsh environments
  • Foot & large flange mounting options
  • Operates at 952 RPM, both rotation directions
  • Cast iron construction for durability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 351 mm
Efficiency 78.9%
Frame Size IEC 90
Height 217 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type Foot, Large Flange
Number of Poles 6
Phase 3
Power Factor 0.59
Rated Current 2.35 A
Rated Frequency 50 Hz
Rated Power 0.75 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 50 dBA
Speed Rating 952 RPM
Torque Rating 7.52 N-m
Weight 23 kg
Width 170 mm

Description

<p>When considering a reliable and robust motor for industrial applications, the General Performance Motors range stands out as a solid choice. Crafted with precision, these motors are designed to meet the demanding needs of both industrial and commercial settings.</p><p>Operating at a rated voltage of 400 V and a current of 2.35 A, this motor is built for efficiency and performance. With a frequency rating of 50 Hz, it seamlessly integrates into standard electrical systems. Its IP55 degree of protection ensures that it can withstand dust ingress and low-pressure water jets from any direction—ideal for challenging environments.</p><p>The motor&amp;#39;s construction features durable cast iron material, providing excellent longevity even under strenuous conditions. It boasts an IEC 90 frame size which is well-suited for various applications requiring compact yet powerful solutions. The product dimensions are practical too: with a width of 170 mm, height of 217 mm, and depth of 351 mm, this motor fits comfortably within most setups without compromising on space.</p><p>In terms of power delivery, the motor offers a rated power output of 0.75 kW with an impressive torque rating of 7.52 N-m at a speed rating of 952 RPM. This makes it particularly effective for tasks requiring consistent rotational force while maintaining energy efficiency at an efficiency rate of 78.9%. Furthermore, its power factor stands at 0.59—indicating balanced reactive power management.</p><p>The insulation class ICLF ensures optimal thermal resistance up to ambient temperatures as high as 40 degrees Celsius—a crucial feature in maintaining operational stability over extended periods.</p><p>Flexibility in installation is another highlight; it supports both foot mounting and large flange mounting options to suit diverse application requirements effectively.</p><p>Aesthetically finished in Munsell Blue, the motor not only performs reliably but also maintains visual appeal in your setup environment.</p><p>Moreover, its sound level measures just around 50 dBA—making it relatively quiet during operation compared to other motors in its class; this can be beneficial when noise levels are critical considerations within your work environment.</p><p>Weighing approximately 23 kg, it&amp;#39;s manageable during installation or maintenance activities without excessive strain on resources or personnel involved.</p><p>With rotation capability on both sides (clockwise or counter-clockwise), this model provides versatility depending on specific operational needs or constraints faced by users across different projects or industries alike.</p><p>This general performance motor promises durability coupled with efficient functionality tailored perfectly towards meeting modern technical demands efficiently yet cost-effectively over time—an investment worth considering if you seek dependable machinery solutions catered precisely towards enhancing productivity consistently across varied applications seamlessly!</p>
