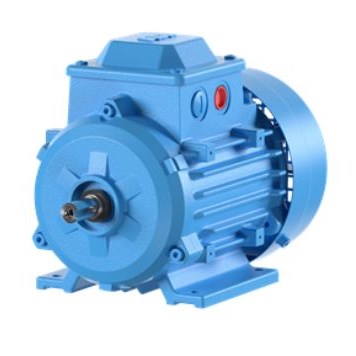

ABB 3GBA103810-ASD Low Voltage Motor IEC 100 Cast Iron 6P 3PH 1.5kW 400V B3 Foot Mount IP55

Product Code: 3GBA103810-ASD

  • 1.5 kW power with 82.5% efficiency
  • IP55 protection for harsh environments
  • B3 foot mount design for easy installation
  • Operates at 953 RPM, both rotation directions
  • Durable cast iron construction
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 411 mm
Efficiency 82.5%
Frame Size IEC 100
Height 240 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type B3 Foot Mount
Number of Poles 6
Phase 3
Power Factor 0.66
Rated Current 4 A
Rated Frequency 50 Hz
Rated Power 1.5 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 48 dBA
Speed Rating 953 RPM
Torque Rating 15.11 N-m
Weight 37 kg
Width 200 mm

Description

<p>When selecting a motor for industrial or commercial applications, it&amp;#39;s essential to consider both performance and reliability. The General Performance Motor detailed here stands out as a robust choice, thanks to its comprehensive specifications tailored for demanding environments.</p><p>Starting with the basics, this motor operates at a rated voltage of 400 V and a current of 4 A. It is designed to function efficiently at a frequency of 50 Hz, making it well-suited for standard electrical systems. With an impressive rated power output of 1.5 kW, this motor delivers reliable performance across various tasks.</p><p>One critical aspect when choosing motors is their protection against environmental factors. This model boasts an IP55 degree of protection, ensuring resistance against dust ingress and low-pressure water jets from any direction—a crucial feature for maintaining longevity in harsh conditions.</p><p>Mounting flexibility is another advantage with this motor&amp;#39;s B3 foot mount configuration. Its dimensions—200 mm in width, 240 mm in height, and 411 mm in depth—allow it to fit seamlessly into many setups without requiring extensive modifications.</p><p>Constructed from durable cast iron, the motor promises strength and durability under continuous operation at ambient temperatures up to 40&amp;#176;C. Weighing in at 37 kg, it balances sturdiness with manageability during installation or maintenance processes.</p><p>The IEC 100 frame size signifies compatibility with international standards while offering ease in replacement or upgrading scenarios. A notable efficiency rating of 82.5% underscores its energy-saving capabilities—an important factor for reducing operational costs over time.</p><p>For those concerned about noise pollution within their facilities, this motor operates quietly at just 48 dBA sound level. Additionally, the torque rating stands at an impressive 15.11 N-m which ensures smooth start-ups and consistent power delivery even under varying loads.</p><p>Versatility comes naturally as the rotation direction accommodates both sides—a beneficial trait when system designs require adaptability without compromising on performance metrics like speed rating (953 RPM).</p><p>Finally, the insulation class ICLF further enhances safety by providing adequate thermal endurance during prolonged operations ensuring that all components remain protected from overheating risks associated with intensive use cycles prevalent within industrial settings today—all wrapped neatly together painted aesthetically pleasing Munsell Blue shade!</p><p>In summary: If you&amp;#39;re seeking dependable general-purpose motors capable enough not only meet but exceed expectations across multiple fronts including reliability efficiency versatility then look no further than what’s described above—it certainly checks all boxes necessary ensure seamless integration into your existing infrastructure!</p>
