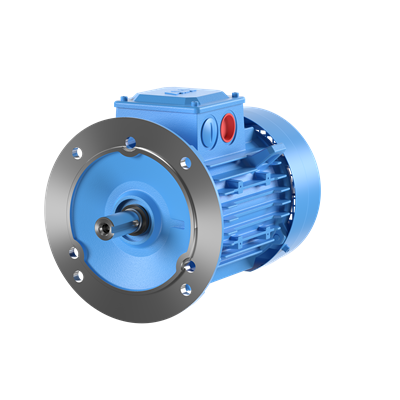

ABB 3GBA103810-BSD Low Voltage Motor IEC 100 Cast Iron 6P 3PH 1.5kW 400V Large Flange Mounting IP55

Product Code: 3GBA103810-BSD

  • 1.5 kW power, 400 V, 4 A rated motor
  • IP55 protection for dust and water resistance
  • Cast iron build with IEC 100 frame size
  • Operates at ambient temp up to 40°C
  • Dual rotation direction capability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 411 mm
Efficiency 82.5%
Frame Size IEC 100
Height 240 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type Large Flange
Number of Poles 6
Phase 3
Power Factor 0.66
Rated Current 4 A
Rated Frequency 50 Hz
Rated Power 1.5 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 48 dBA
Speed Rating 953 RPM
Torque Rating 15.11 N-m
Weight 37 kg
Width 200 mm

Description

<p>When it comes to selecting a reliable motor for industrial and commercial applications, this General Performance Motor stands out with its robust features tailored for demanding environments. Designed with precision and built from durable materials, it ensures consistent performance across various operational settings.</p><p>Operating at a rated voltage of 400 V and a frequency of 50 Hz, this motor is engineered to deliver efficient power output with a rated current of 4 A. With a rated power of 1.5 kW, it&amp;#39;s perfectly suited for tasks that require moderate energy consumption without compromising on performance.</p><p>The motor&amp;#39;s construction is both sturdy and resilient, featuring cast iron material that enhances its durability. The IP55 degree of protection safeguards the internal components against dust ingress and water jets from any direction, making it suitable for challenging industrial conditions.</p><p>Installation flexibility is another highlight due to its large flange mounting type. This feature simplifies integration into existing systems while maintaining stability during operation. The dimensions—200 mm in width, 240 mm in height, and 411 mm in depth—alongside its weight of 37 kg make it compact enough for various setups without being cumbersome.</p><p>Efficiency is key in modern engineering solutions, and this motor doesn&amp;#39;t disappoint with an efficiency rating of 82.5%. It operates quietly at a sound level of just 48 dBA, ensuring minimal noise pollution which can be critical in sensitive environments or where multiple units are used simultaneously.</p><p>The torque rating stands at an impressive 15.11 N-m, delivering the necessary force to handle demanding tasks effectively. Moreover, the ability to rotate in both directions adds versatility to its application range.</p><p>Designed with an IEC frame size of 100 and insulated under class ICLF standards, the motor offers reliable thermal management even when ambient temperatures reach up to 40&amp;#176;C. Its speed rating of 953 RPM ensures steady operation across various load conditions while maintaining optimal power factor efficiency at 0.66.</p><p>Finished in Munsell Blue, this motor not only performs well but also brings aesthetic value if visibility within your facility is important.</p><p>Overall, whether you&amp;#39;re upgrading existing equipment or setting up new installations requiring dependable motors capable of handling rigorous demands efficiently—this General Performance Motor presents itself as a solid choice backed by proven specifications designed specifically for your needs.</p>
