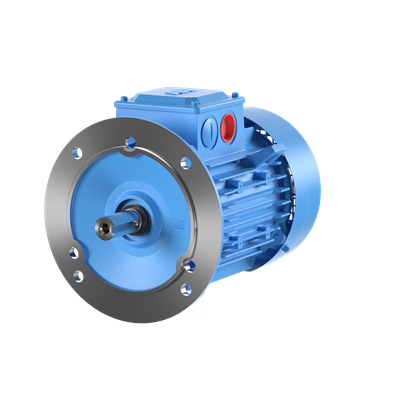

ABB 3GBA103810-JSD Low Voltage Motor IEC 100 Cast Iron 6P 3PH 1.5kW 400V Foot Small Flange Mounting IP55

Product Code: 3GBA103810-JSD

  • 1.5 kW motor with 82.5% efficiency
  • IP55 protection for tough environments
  • Dual rotation direction capability
  • Compact IEC 100 frame in cast iron
  • Operates at a speed of 953 RPM
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 411 mm
Efficiency 82.5%
Frame Size IEC 100
Height 240 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type Foot, Small Flange
Number of Poles 6
Phase 3
Power Factor 0.66
Rated Current 4 A
Rated Frequency 50 Hz
Rated Power 1.5 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 48 dBA
Speed Rating 953 RPM
Torque Rating 15.11 N-m
Weight 37 kg
Width 200 mm

Description

<p>When it comes to selecting a motor that balances performance, durability, and reliability, this General Performance Motor stands out as a robust solution for industrial and commercial applications. Designed to meet the rigorous demands of various environments, this motor offers impressive specifications that cater to your technical requirements.</p><p>Operating at a rated voltage of 400 V and a current of 4 A, this motor is engineered for efficiency with an 82.5% rating. It runs smoothly at a frequency of 50 Hz, ensuring consistent performance across different operational scenarios. The power output is substantial with a rated power of 1.5 kW, making it suitable for tasks requiring moderate energy consumption.</p><p>Built with precision in mind, the motor&amp;#39;s dimensions include a width of 200 mm, height of 240 mm, and depth of 411 mm. Its compact size does not compromise on strength; the cast iron construction provides resilience against wear and tear while maintaining an overall weight of 37 kg.</p><p>The IP55 degree of protection ensures that the motor is well-guarded against dust ingress and water jets from any direction—ideal for harsh industrial settings. Furthermore, its insulation class ICLF contributes to thermal stability under varying ambient temperatures up to 40&amp;#176;C.</p><p>Mounting flexibility is another highlight with options for foot or small flange installation methods available—allowing seamless integration into existing systems without needing extensive modifications. The frame size adheres to IEC standards (IEC 100), confirming compatibility with international specifications.</p><p>In terms of acoustics, the sound level is maintained at an unobtrusive 48 dBA which minimizes noise pollution—a beneficial feature in environments where quiet operation is valued. Additionally, it supports both clockwise and counterclockwise rotation directions providing versatility in application setups.</p><p>The torque rating stands at an impressive 15.11 N-m while running at a speed rating of 953 RPM; these figures ensure reliable starting capabilities and smooth operational flow even under load conditions.</p><p>Aesthetically finished in Munsell Blue color adds an element of visual appeal while also serving practical identification purposes within complex setups or multi-unit installations.</p><p>This general performance motor delivers dependable service backed by solid engineering principles tailored specifically for those who prioritize facts over frills when choosing equipment solutions tailored towards productivity enhancement through technological excellence—all wrapped up neatly within its Manufacturer Part Number details provided upon request.</p>
