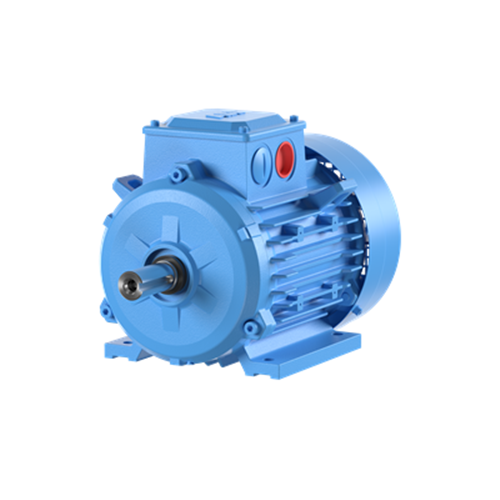

ABB 3GBA113410-HSD Low Voltage Motor IEC 112 Cast Iron 6P 3PH 2.2kW 400V Foot Large Flange Mounting IP66

Product Code: 3GBA113410-HSD

  • Rated power of 2.2 kW, efficient performance
  • IP55 protection for dust and water resistance
  • Dual mounting options: Foot & Large Flange
  • Durable cast iron construction
  • Operates at 957 RPM with low sound level
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type STAR - 240V in D & 415V in Y
Degree of Protection IP55
Depth 456 mm
Efficiency 84.3%
Frame Size IEC 112
Height 252 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type Foot, Large Flange
Number of Poles 6
Phase 3
Power Factor 0.64
Rated Current 5.94 A
Rated Frequency 50 Hz
Rated Power 2.2 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 50 dBA
Speed Rating 957 RPM
Torque Rating 21.95 N-m
Weight 46 kg
Width 230 mm

Description

<p>When it comes to selecting a reliable and robust motor for industrial and commercial applications, this General Performance Motor stands out with its impressive specifications tailored for demanding environments. </p><p>Operating at a rated voltage of 400 V and a frequency of 50 Hz, this motor is designed to meet standard Australian electrical requirements. With a rated current of 5.94 A, it ensures efficient energy usage while delivering consistent performance.</p><p>The motor&amp;#39;s construction features an IP55 degree of protection, making it dust-protected and resistant to water jets from any direction—ideal for challenging industrial settings where durability is key. Its cast iron material not only provides strength but also enhances longevity under rigorous conditions.</p><p>Designed with versatility in mind, the motor offers foot or large flange mounting options, accommodating various installation needs. Its dimensions—230 mm in width, 252 mm in height, and 456 mm in depth—strike a balance between compactness and power delivery.</p><p>Performance-wise, the motor boasts an impressive rated power of 2.2 kW with an efficiency rating of 84.3%, ensuring optimal energy conversion while minimizing losses. The torque rating of 21.95 N-m coupled with a speed rating of 957 RPM provides steady rotational force suitable for diverse applications.</p><p>Sound levels are kept at a comfortable 50 dBA, promoting quieter operation without compromising on power output—a significant advantage in noise-sensitive environments.</p><p>The IEC frame size of 112 aligns with international standards, facilitating easy integration into existing systems or new setups. Furthermore, the insulation class ICLF enhances safety by offering substantial resistance against thermal stress.</p><p>With an ambient temperature tolerance up to 40&amp;#176;C and dual rotation capability (both sides), this motor adapts well to varying operational demands across different sectors.</p><p>Finished in Munsell Blue, the product not only performs efficiently but also adds aesthetic value to your setup. Weighing in at just 46 kg despite its robust build quality underscores its design efficiency without sacrificing strength or performance capabilities.</p><p>In summary, this General Performance Motor combines technical excellence with practical usability—offering reliability and adaptability essential for modern industrial operations while maintaining compliance with industry standards.</p>
