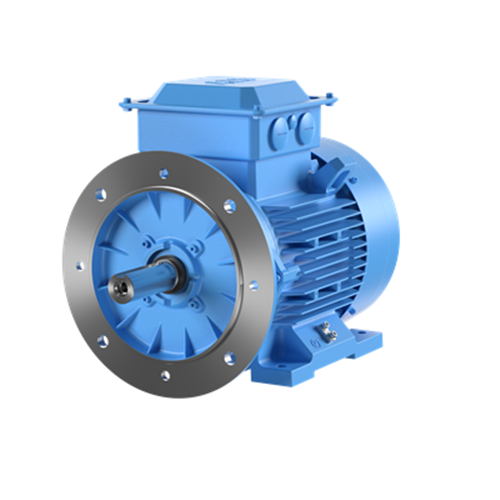

ABB 3GBA162420-HDF Low Voltage Motor IEC 160 Cast Iron 4P 3PH 15kW 400V Foot Large Flange Mounting IP55

Product Code: 3GBA162420-HDF

  • 15 kW power, 92.1% efficiency
  • IP55 protection for harsh environments
  • Dual mounting: Foot & Large Flange
  • Operates at 1477 RPM speed
  • Robust cast iron construction
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type DELTA - 415V in D & 690V in Y
Degree of Protection IP55
Depth 683.5 mm
Efficiency 92.1%
Frame Size IEC 160
Height 413 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type Foot, Large Flange
Number of Poles 4
Phase 3
Power Factor 0.82
Rated Current 28.5 A
Rated Frequency 50 Hz
Rated Power 15 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 61 dBA
Speed Rating 1477 RPM
Torque Rating 96.99 N-m
Weight 161 kg
Width 310 mm

Description

<p>When it comes to reliable and robust performance in industrial and commercial applications, the General Performance Motor stands out as a solid choice. Designed with precision, this motor is engineered to meet demanding operational requirements while maintaining efficiency and durability.</p><p>Operating at a rated voltage of 400 V and a current of 28.5 A, this motor aligns well with standard industrial power systems. Its rated frequency of 50 Hz ensures compatibility with various electrical networks across Australia, making it versatile for different setups.</p><p>The motor&amp;#39;s degree of protection is IP55, indicating that it offers substantial protection against dust ingress and low-pressure water jets from any direction—ideal for environments where exposure to elements is a consideration. The mounting options include both foot and large flange types, providing flexibility in installation based on your specific needs.</p><p>Constructed from durable cast iron, the motor boasts dimensions of 310 mm in width, 413 mm in height, and 683.5 mm in depth. This sturdy build contributes to its weight of 161 kg but assures longevity even under rigorous conditions. Its Munsell Blue colour gives it a professional appearance suitable for any industrial setting.</p><p>Designed to operate efficiently at an ambient temperature up to 40&amp;#176;C, the motor delivers a rated power output of 15 kW with an impressive efficiency rating of 92.1%. This means you can expect significant energy savings over time without compromising performance.</p><p>The IEC frame size is marked at 160, which fits seamlessly into existing systems requiring this specification. With a power factor of 0.82, the motor optimizes energy usage effectively while minimizing reactive power losses—a critical aspect for cost-effective operations.</p><p>Sound levels are kept at a manageable threshold with an output of just 61 dBA, ensuring quieter operation compared to many alternatives on the market—an important consideration if noise pollution is a concern within your facility.</p><p>For those interested in torque capabilities, this model provides a torque rating of 96.99 N-m alongside rotational speeds reaching up to 1477 RPMs; these specifications confirm its ability to handle heavy-duty tasks reliably.</p><p>Furthermore, its insulation class ICLF enhances safety by offering superior thermal endurance during prolonged use periods or sudden load changes—critical when operating under fluctuating conditions or extended durations.</p><p>In summary: whether you&amp;#39;re upgrading existing machinery or installing new equipment altogether—the General Performance Motor represents an optimal balance between functionality and resilience tailored specifically towards meeting Australian industry standards effortlessly without compromise on quality assurance benchmarks typically expected within such sectors today!</p>
