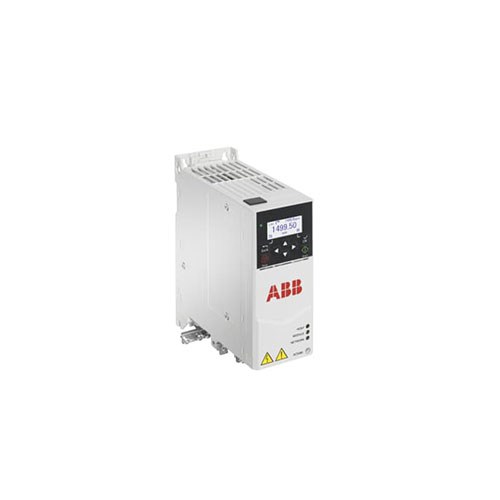

ABB 3AXD50000031873_S Variable Speed Machinary Drive 0.55kW 2.4A IP20 1PH

Product Code: 3AXD50000031873_S

  • Compact size: 70mm W x 223mm H x 176mm D
  • Rated power of 0.55 kW for efficient performance
  • Operates at 200-240 VAC and up to 2.4 A
  • IP20 protection for indoor use
  • Includes control unit & PC connection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Variable Speed Machinary Drive
Brand ABB
Series ACS380
Degree of Protection IP20
Depth 176 mm
Frame Size R0
Height 223 mm
Includes Control Unit, PC Connection
Number of Analogue Inputs 2
Number of Digital Inputs 5
Number of Digital Outputs 2
Number of Hardware Interfaces 3
Number of RS-485 Interfaces 1
Phase 1
Rated Current 2.4 A
Rated Frequency 47.5/63 Hz
Rated Power 0.55 kW
Rated Voltage 200-240 VAC
Width 70 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
