Specifications

Ambient Temperature Range (°C)	-15 to 40 (No frost allowed)
Dimensions (mm)	955H x 380W x 413D
Size of Frame	R9
No. of Phases	3
Reference No.	ACS880-01-363A-3+D150+E200+N7502+P904+R700
Rated Supply Voltage AC (V)	380 - 415
No. of Digital Inputs	6
No. of Analogue Inputs	2
No. of Digital Outputs	2
No. of Analogue Outputs	2
Output Current - Normal Duty (A)	363
Output Power - Normal Duty (kW)	200
Output Current - Light Duty (A)	345
Output Power - Light Duty (kW)	200
Output Power - Heavy Duty (kW)	160
Output Current - Heavy Duty (A)	293
No. of Relay Outputs	3

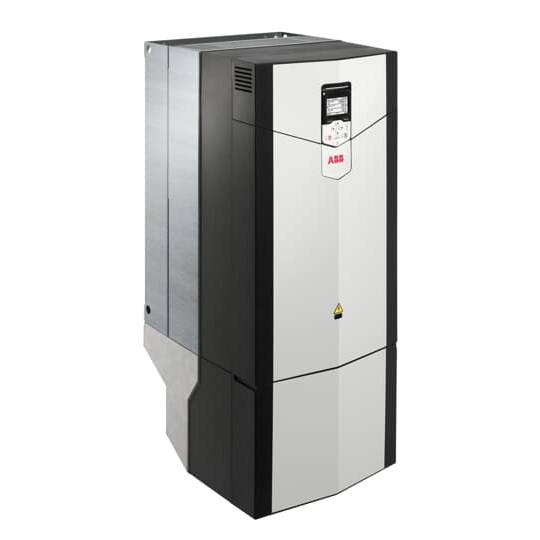

Product Type	Industrial Drive With B'CP
Brand	ABB
Series	ACS880
Ambient Temperature	-15 to 40 deg C
Communication	EIA-485 (Modbus)
Degree of Protection	IP21
Depth	413 mm
Frame Size	R9
Height	955 mm
Mounting Type	Wall
Number of Analogue Inputs	2
Number of Digital Inputs	6
Number of Digital Outputs	2
Number of Relay Outputs	3
Phase	3
Rated Current	363 A
Rated Power	160 kW
Rated Voltage	380-415 VAC
Standards and Approvals	CE/ EN 61800-5-1:2007/ EMC/ ATEX/ RoHS 2011/65/EU/ TÜV/ UL 508C/ CSA
Width	380 mm
