Specifications

Product Type	3-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	1NO
Rated Control Supply Voltage (Us)	DC Operation 12 ... 20 V
Rated Operational Current AC-1 <= 690V (Ie)	25 A
Rated Operational Current AC-3 400V (Ie)	0.375
Rated Operational Current AC-3 690V (Ie)	0.29166666666666669
Rated Operational Power AC-3 400V (Pe)	4 kW
Rated Operational Power AC-3 690V (Pe)	5.5 kW
Rated Frequency	DC; main circuit 50 / 60 Hz
No. of Poles	3P
Depth	77 mm
Height	86 mm
Weight	0.31 kg
Width	45 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

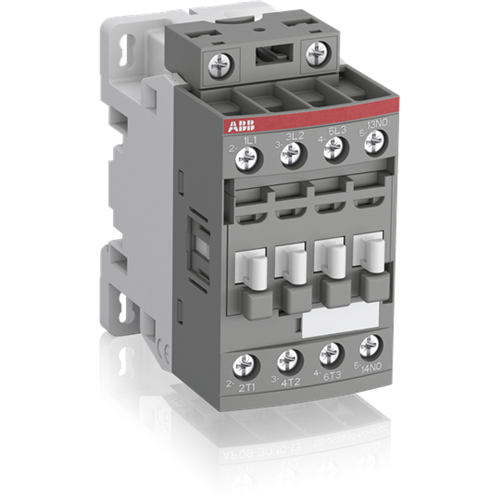

ABB AF09Z301020 Contactor 3P 22A 25A 690VAC Main Circuit Screw Mount
