Specifications

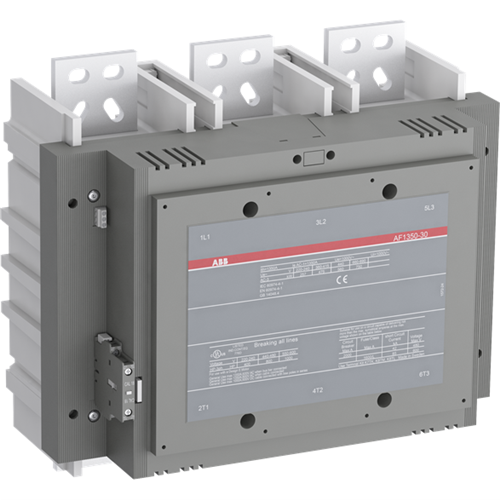

Product Type	Contactor
Brand	ABB
No. of Poles (Total)	3P
Rated Control Supply Voltage (Us)	100-250 V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)	(690 V) 40 °C 1350 A
Rated Operational Current AC-3 400V (Ie)	(415 V) 55 °C 860 A
Rated Operational Current AC-3 690V (Ie)	(690 V) 55 °C 800 A
Rated Operational Power AC-3 400V (Pe)	(415 V) 500 kW
Rated Operational Power AC-3 690V (Pe)	(690 V) 800 kW
Rated Frequency	50/60 Hz
No. of Auxiliary Contacts (NO/NC)	1 NO + 1 NC
Depth	244 mm
Height	392 mm
Weight	32 kg
Width	438 mm
Operating Temperature	-25 to 60 °C (Fitted with Thermal O/L Relay)
Standards and Approvals	IEC 60947-4-1 and EN 60947-4-1
