Specifications

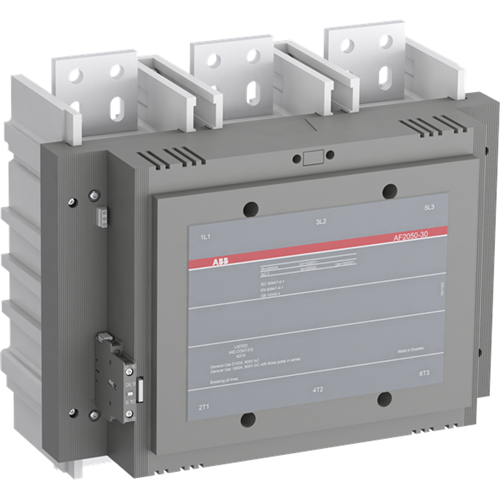

Product Type	3-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	1NO + 1NC
Rated Control Supply Voltage (Us)	50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V
Rated Operational Current AC-1 <= 690V (Ie)	2050 A
Rated Operational Current AC-1 1000V (Ie)	2050 A
Rated Operational Current AC-3 1000V (Ie)	425 A
Rated Operational Current AC-3 400V (Ie)	1060 A
Rated Operational Current AC-3 690V (Ie)	970 A
Rated Operational Power AC-3 1000V (Pe)	630 kW
Rated Operational Power AC-3 400V (Pe)	630 kW
Rated Operational Power AC-3 690V (Pe)	1000 kW
Rated Frequency	50 / 60 Hz
No. of Poles	3P
Depth	244 mm
Height	392 mm
Weight	33 kg
Width	438 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
