Specifications

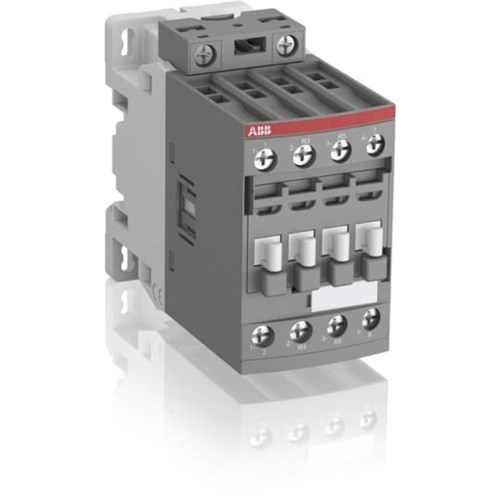

Product Type	4-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	0NO + 0NC
Rated Control Supply Voltage (Us)	50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V
Rated Operational Current AC-1 <= 690V (Ie)	55 A
Rated Operational Current AC-3 400V (Ie)	22 A
Rated Operational Current AC-3 690V (Ie)	10.5 A
Rated Operational Power AC-3 400V (Pe)	11 kW
Rated Operational Power AC-3 690V (Pe)	9 kW
Rated Frequency	50 / 60 Hz
No. of Poles	4P
Depth	101 mm
Height	86 mm
Weight	0.36 kg
Width	45 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1
