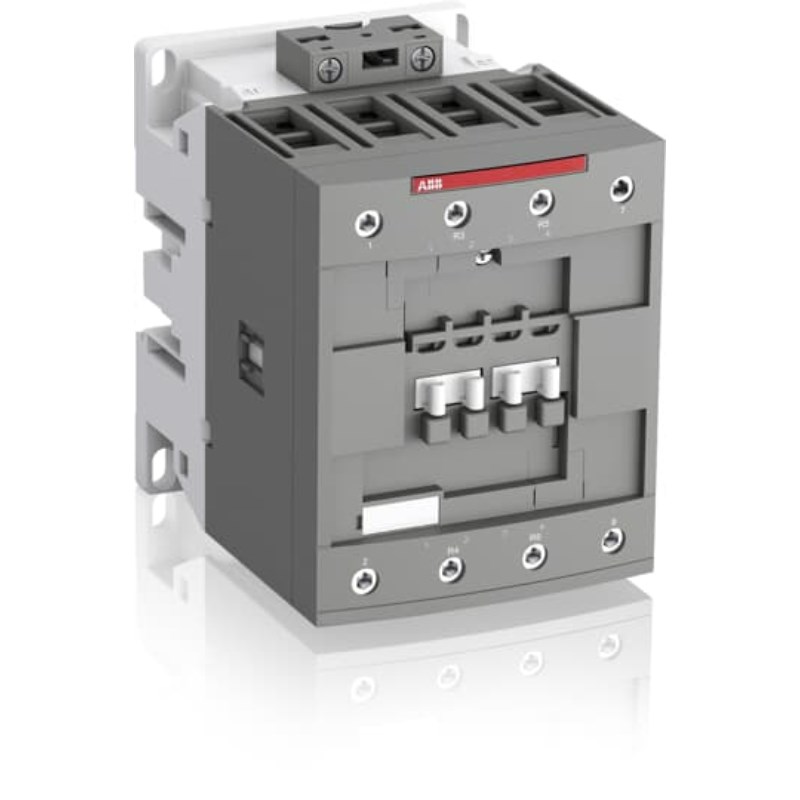

<p>The AF Contactor is a reliable choice for industrial and commercial settings, designed to meet the rigorous demands of electrical systems. With its robust specifications, this contactor ensures efficient operation across various applications.</p><p>Rated to handle voltages up to 1000 VAC, it supports currents of 90 A, 100 A, and 125 A. This versatility makes it suitable for diverse electrical environments. The device operates seamlessly at frequencies of both 50 Hz and 60 Hz, providing flexibility in different power systems.</p><p>A key feature is its impressive rated impulse withstand voltage of 8 kV and a rated insulation voltage that accommodates both 1000 VAC and 600 V levels. This ensures resilience against voltage spikes and enhances safety by preventing breakdowns.</p><p>The AF Contactor&#39;s short-time withstand current capability is noteworthy: it can endure up to 1200 A for one second, ensuring reliability during transient conditions. Other time-rated currents include handling up to 780 A for ten seconds, which underscores its robustness in demanding situations.</p><p>Its contact configuration includes two normally open (2NO) and two normally closed (2NC) contacts, allowing versatile control options for complex circuits. The screw terminal type simplifies installation while ensuring secure connections.</p><p>With an IP10/IP20 degree of protection rating coupled with an IP3 degree of pollution resistance, the device offers sufficient protection against solid objects and limited ingress from dust or accidental touch in specified environments.</p><p>Mounting is straightforward via screw-type mounts, enhancing ease-of-use during installation or maintenance tasks. The wire stripping lengths are practical: 10 mm for the control circuit and 17 mm for the main circuit facilitate easy wiring without compromising on connection integrity.</p><p>Physically compact yet sturdy with dimensions measuring a width of 90 mm, height of 125.5 mm, and depth of 116 mm; this contactor fits well within standard panel spaces without sacrificing performance capabilities.</p><p>Certified under multiple standards such as IEC/EN60947-1/4-1 along with UL60947-1/4-1 plus CSA C22 certifications ensure compliance with international safety norms—providing peace-of-mind regarding quality assurance across global markets including Australia’s stringent requirements.</p><p>Additional specs like an air thermal current rating at an ample capacity of up to125A further enhance operational stability even under high-load conditions frequently encountered within industrial settings where continuous duty cycles are common practice today!</p><p>Finally worth noting—the coil consumption stands modestly at just four VA making energy-efficient contributions towards overall system sustainability goals often sought after by modern enterprises aiming toward reduced carbon footprints wherever feasible!</p>
