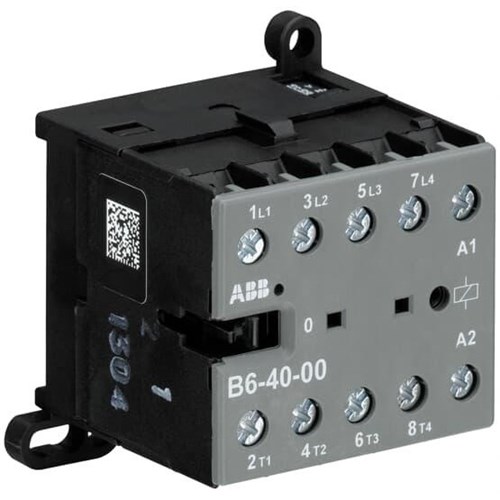

<p>When it comes to selecting a reliable and efficient mini contactor for industrial or commercial applications, understanding the technical specifications is crucial. This particular mini contactor offers a balanced blend of performance and durability that meets various operational demands.</p><p>With a rated voltage of 24 VAC and a current rating of 6 A, this mini contactor is well-suited for low-voltage applications. It operates efficiently at both 50 and 60 Hz frequencies, providing versatility in different electrical environments. The power loss is minimal, ranging between 1 to 2 watts, which ensures energy efficiency—a significant consideration for long-term operational costs.</p><p>Safety and reliability are paramount in any electrical component. This mini contactor boasts a rated impulse withstand voltage of 6 kV and an insulation voltage of up to 690 V. These features offer robust protection against overvoltage conditions, enhancing the safety profile of your installations.</p><p>The contact configuration includes four normally open (4NO) contacts, which allows for straightforward integration into existing systems while supporting multiple circuit connections simultaneously. The screw terminal type ensures secure electrical connections that are easy to manage during installation or maintenance.</p><p>Designed with practicality in mind, this device offers an IP20 degree of protection. While it provides basic protection against solid objects larger than 12 mm like fingers or tools, it’s essential to ensure it&#39;s installed in appropriate environments where additional protective measures are not required.</p><p>Mounting options include both DIN rail and wall mounting capabilities, offering flexibility depending on your space constraints or design preferences. With dimensions measuring at a width of 52.5 mm, height of 57.5 mm, and depth of 46.7 mm, its compact size facilitates easy incorporation into control panels without occupying excessive space.</p><p>Operating effectively within temperatures ranging from -20&#176;C to +55&#176;C makes this mini contactor adaptable across various climates and conditions typical within Australian settings—be it coastal humidity or inland heatwaves.</p><p>Conforming to international standards such as IEC/EN 60947-1/-4-1/-5-1 as well as UL certifications (UL 60947-1/-4-1), you can trust in its compliance with rigorous quality benchmarks ensuring dependable performance across global markets.</p><p>Rated at a power capacity up to 4 kW with AC actuating voltage type underscores its capability in managing substantial loads efficiently—ideal for diverse industrial applications requiring consistent operation without compromising on safety or efficiency.</p><p>In summary, this mini contactor combines essential features designed for reliability and adaptability within varied technical contexts—making it an excellent choice if you&#39;re seeking dependable performance aligned with industry standards.</p>
