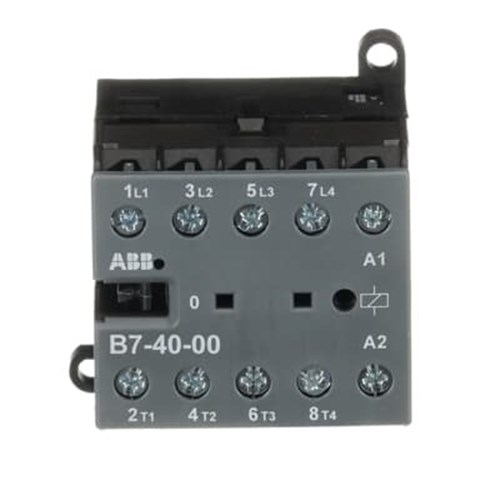

<p>This industrial-grade product is designed to meet the demanding needs of both commercial and industrial applications, offering reliable performance across a range of environments. With a rated voltage of 690/220 VAC/VDC and a frequency capacity of 50/60 Hz, this device is versatile enough for various electrical systems.</p><p>At its core, the product features a contact configuration of 0NC+4NO, ensuring effective control and switching capabilities. The screw-type terminals allow for secure connections with a tightening torque between 0.8-1.1 N-m, providing stability in operation.</p><p>Engineered to withstand challenging conditions, it boasts an operational temperature range from -25 to 55 degrees Celsius and can be stored safely between -40 to 80 degrees Celsius. This resilience makes it suitable for diverse Australian climates.</p><p>The degree of protection is rated at IP20, indicating effective protection against solid objects but not water ingress—ideal for indoor applications where moisture exposure is minimal.</p><p>For ease of installation and maintenance, the wire stripping length is set at 9 mm. The dimensions are compact with a width of 52.5 mm, height of 57.5 mm, and depth of 46.7 mm—facilitating integration into existing setups without requiring significant space adjustments.</p><p>In terms of safety standards and approvals, this product complies with IEC/EN standards such as IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 as well as UL standards like UL 60947-1 and UL 60947-4-1. It also adheres to IEC standard IEC 60335-2-40 A2L ensuring adherence to international safety norms.</p><p>The control circuit connecting capacity accommodates flexible wires with ferrules ranging from single or double wires sized at 1–2.5 sq-mm; similarly equipped for insulated ferrules or rigid wiring up to sizes ranging from single or double wires sized at up to four sq-mm—demonstrating adaptability in different wiring configurations.</p><p>Main circuit connections mirror these specifications allowing similar flexibility in wire types used during installation processes enhancing compatibility across various system designs while maintaining efficiency through minimized power loss pegged at just about one point four watts making it energy efficient too especially important when considering long-term operational costs associated within larger installations over time</p><p>Overall this product brings together robust design elements stringent compliance credentials alongside practical usability aspects all wrapped into one comprehensive solution tailored towards meeting today&#39;s complex technical requirements effectively efficiently consistently</p>
