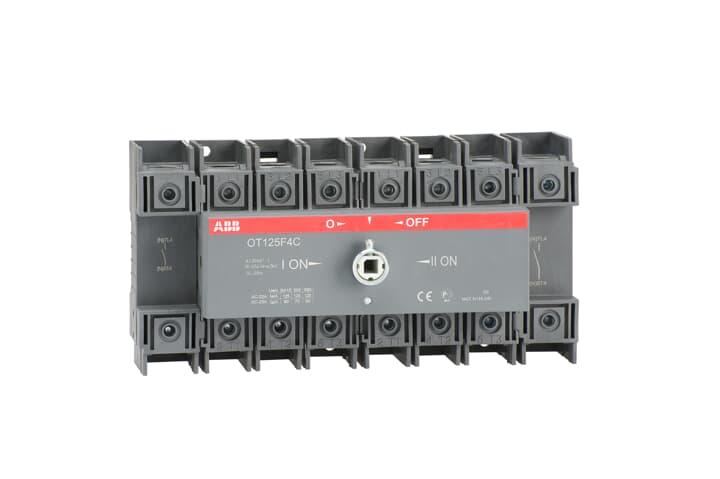

<p>When considering a reliable and robust manual switch for your industrial or commercial setup, this product offers the durability and performance you need. Designed to handle demanding environments, it boasts a rated current of 125 A, making it suitable for various heavy-duty applications. Its dimensions are compact yet substantial at 193 mm in width, 100 mm in height, and 86 mm in depth, ensuring that it fits seamlessly into your distribution board installation.</p><p>This manual switch adheres to numerous standards and approvals including UL 98, IEC60947-3, RoHS, REACH, CE, and WEEE. These certifications guarantee its compliance with international safety and environmental regulations. Weighing in at just 1.18 kg, it&#39;s lightweight enough for easy handling while maintaining structural integrity.</p><p>The device is engineered to withstand significant electrical stress with a rated impulse withstand voltage of 8 kV and a short time withstand current rating of 2.5 kA. It operates efficiently up to a rated voltage of 415 VAC across its four poles.</p><p>Designed with practicality in mind, the switch features an IP20 degree of protection against solid objects larger than 12 mm but should be used within environments classified under degree of pollution IP3 conditions. The NEMA rating stands at NEMA 1 which indicates basic protection from dust.</p><p>Installation is straightforward thanks to its front mount configuration using four holes. The screw clamp terminals accommodate cable cross-sections ranging from 10-70 sq-mm with ease of use ensured by the front mode operation and top/bottom line terminal positions allowing flexibility during installation.</p><p>With an interlockable feature enhancing operational safety and control element colored black for easy identification against other components on-site; this switch provides clear I-O-II indicators simplifying status monitoring during operations.</p><p>The unit also supports efficient energy management with a low power loss figure recorded at just 6.3 W while offering high reliability through its rated insulation voltage capacity up to750 V ensuring long-term stability even under varying load conditions.</p><p>For those concerned about mechanical performance parameters: tightening torque requirements sit comfortably around6 N-m supporting secure connections throughout service life without additional adjustments needed post-installation phase thereby reducing maintenance overheads considerably over time span usage period typically expected from such equipment types deployed within similar contexts globally today!</p><p>Overall if you&#39;re seeking dependable functionality coupled alongside adherence towards stringent regulatory frameworks governing markets served by products like these then look no further than incorporating this particular model into your next project specification list right away!</p>
