Specifications

Rated Short-Circuit Breaking Capacity (Icu) acc. To IEC/AS/NZS 61009	10 kA

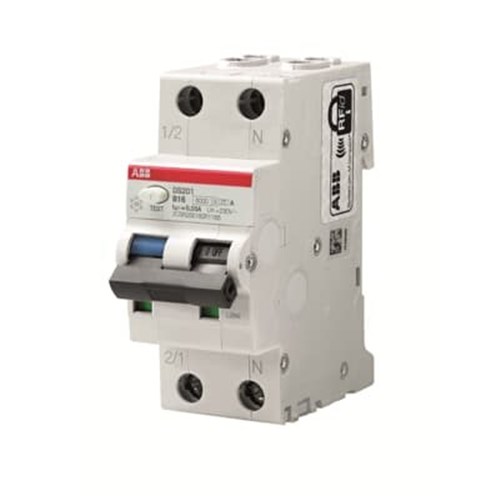

Product Type	Residual Current Circuit Breakers with Overcurrent Protection RCBO
Brand	ABB
Series	DS201
Diagnostics	Blue Flag on Toggle
Electrical Endurance	10000 cycle
No. of Poles (Total)	1P+N
Over Voltage Category	III
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	500 V AC
Reverse Connection of Supply Possible	Yes
Indication	Red ON, Green OFF
Power Loss	Average per Pole 4.1 W
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	6 kA
Rated Voltage	230/240 V AC
Trip Curve	C
Terminal Type	Screw Terminals
Voltage Range	170-264 V
Test Voltage	2 kV
Residual Current Type	Type A
Rated Residual Current	30 mA
Type of Residual Current	Type A
Operation Mode	Instantaneous
Cable Cross Section	0.75-25 sq-mm 1-Solid Core , 0.75-16 sq-mm 4-Multi-Wired
Conductor Cross Section Flexible	0.75 to 16 mm²
Connecting Capacity	Busbar 10-10 sq-mm, Stranded 0.75-25 sq-mm, Flexible with Ferrule 0.75-16 sq-mm, Flexible 0.75-16 sq-mm
Housing Colour	RAL 7035 Grey
Housing Type	Insulation group I - II, RAL 7035
Mechanical Endurance	20000 cycle
Mounting Type	DIN Rail
Switching Function	Undelayed
Tightening Torque	2.8 N-m
Wire Stripping Length	12 mm
Depth	69 mm
Height	85 mm
Weight	0.2 kg
Width	35 mm
Width in No. of Modular Spacing	2
Rated Surrounding Temperature Without Derating	30 °C
Pollution Degree	2
Storage Temperature	-40 to 70 °C
Operating Temperature	-25 to 55 °C
IP Rating	IP20; IP40
Standards and Approvals	IEC/EN 61009-1; IEC/EN 61009-2-1
