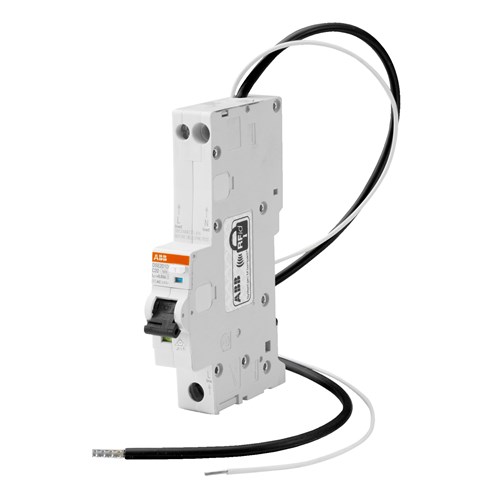

<p>The Long Body RCBO is a reliable choice for those seeking robust protection in industrial and commercial electrical systems. Designed to handle a rated current of 25 A, it provides dependable performance with its impressive breaking capacity of 6 kA and short circuit capacity of 10 kA.</p><p>This device operates efficiently within a voltage range of 230/240 VAC, supported by a rated insulation voltage of 500 V and an impulse withstand voltage of 4 kV. Its power loss is minimal at just 3.3 W, making it an energy-efficient component in any setup.</p><p>Conforming to stringent standards such as IEC 61009-1, IEC 61009-2-2, and AS/NZS 61009.1, this RCBO ensures compliance with international safety requirements. It features an IP20/IP40 degree of protection, safeguarding against dust ingress while maintaining adequate resistance to external elements.</p><p>Installation is straightforward with its DIN Rail mounting type and screw clamp terminals that offer tightening torques of either 1.2 N-m or 2.8 N-m depending on your needs. The compact dimensions—17.5 mm width, 115 mm height, and a depth of only 69 mm—allow for easy integration into various panel setups without occupying excessive space.</p><p>The RCBO supports both solid core (16-35 sq-mm) and multi-wired cables (16 sq-mm), providing flexibility for different wiring configurations. With connecting capacities accommodating busbar connections up to 10 sq-mm and flexible wires from 1-16 sq-mm, it&#39;s versatile enough for diverse applications.</p><p>Rated for frequencies between 50/60 Hz, this unit offers excellent electrical durability with up to 10,000 cycles under normal operating conditions ranging from -25&#176;C to +55&#176;C ambient temperatures.</p><p>Safety features are enhanced by the device&#39;s Type A residual current detection capability along with instantaneous operating characteristics that ensure quick response times during fault conditions. The blue window fault detection feature adds another layer of operational transparency.</p><p>For user convenience, the contact position indication uses red for ON status and green for OFF status while earthing switch operation remains undelayed ensuring swift action when needed most.</p><p>Housed in RAL7035 grey casing which blends seamlessly into modern installations; wire stripping lengths are optimized at the top (11 mm) and bottom (12.5 mm) terminals facilitating efficient wiring processes across varying installation environments including overvoltage category III areas where reliability cannot be compromised even under test voltages ranging from195–264 V or dielectric tests up till2kV levels respectively thus ensuring maximum resilience against unforeseen surges thereby enhancing overall system longevity significantly too!</p>
