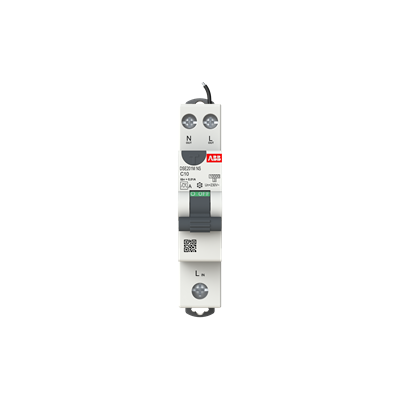

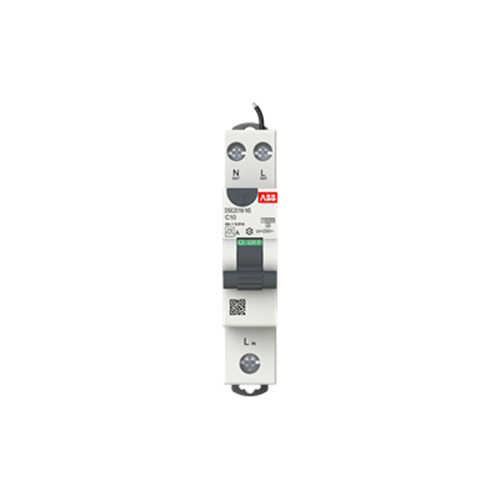

<p>This industrial-grade product is designed to meet the rigorous demands of electrical engineering applications, providing a reliable and efficient solution for professionals in Australia. With a rated current of 10 A and a rated voltage of 240 V, it ensures optimal performance in various settings. The unit offers a breaking capacity of 10 kA, making it suitable for managing high fault currents effectively.</p><p>The device features 1P+N poles and adheres to key standards such as IEC 61009-1, IEC 61009-2-2, and AS/NZS 61009.1. It boasts an impressive electrical durability of up to 10,000 cycles, ensuring long-term reliability even under frequent operation. Rated impulse withstand voltage stands at 4 kV while the insulation voltage is capped at 500 V.</p><p>In terms of protection, this product has an IP20 degree rating which provides basic protection against solid objects larger than 12 mm but does not offer water resistance—important considerations when planning installation environments. For pollution degrees, it maintains an IP2 rating.</p><p>The compact dimensions (Width: 17.8 mm; Height: 86 mm; Depth: 70 mm) allow for space-efficient installations on DIN rails. The screw clamp terminal type supports secure connections with wire stripping length set at a precise 13 mm.</p><p>This unit can handle cable cross-sections ranging from solid core wires (up to 35 sq-mm) and multi-wired cables (up to 25 sq-mm), offering versatility in wiring configurations. The connecting capacity accommodates busbars up to 10 sq-mm or rigid wires between one and twenty-five sq-mm while flexible wires can range from one to sixteen sq-mm.</p><p>With an overvoltage category III classification, it&#39;s built for use in fixed installations like distribution boards or industrial machinery where transient overvoltages are expected. Operating within ambient temperatures from -25&#176;C to +55&#176;C ensures adaptability across diverse climates found throughout Australia.</p><p>It comes equipped with contact position indicators that show red when ON and green when OFF—providing clear visual status cues essential during maintenance checks or troubleshooting activities.</p><p>The residual current type is classified as Type A with instantaneous operating characteristics delivering prompt response times crucial during fault conditions without delay thanks also due its undelayed earthing switch type feature included by design engineers here too!</p><p>Finally housing color matches RAL7035 grey standard finish keeping aesthetic consistency across installations needing uniformity among multiple devices installed together side-by-side along same rail system setups common today everywhere we look now increasingly more often than ever before seen historically speaking overall industry-wide trends considered carefully always first foremost above all else naturally enough so!</p><p>Product Code: -</p>
