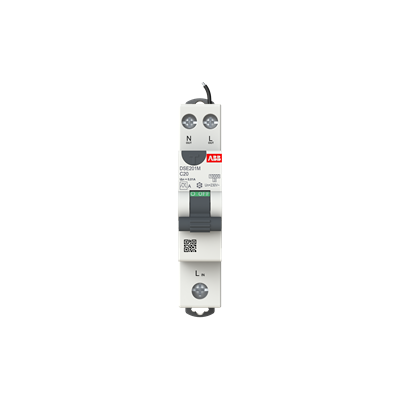

<p>This industrial-grade electrical product is engineered to meet the rigorous demands of commercial and industrial applications. With a rated current of 20 A, it ensures reliable performance for your electrical systems. The device boasts a rated impulse withstand voltage of 4 kV and an insulation voltage of 500 V, offering robust protection against electrical surges and insulation failures.</p><p>Designed for operation at a standard rated voltage of 240 V, this product features a power loss rating of just 3 W, reflecting its efficiency in energy consumption. It operates on a single pole with neutral (1P+N) configuration, making it suitable for diverse circuit requirements while maintaining safety standards.</p><p>The unit&#39;s breaking capacity stands at an impressive 10 kA, ensuring effective interruption under fault conditions. Additionally, it adheres to the IP20 degree of protection standard, safeguarding against solid objects larger than 12 mm but not liquids. Its screw clamp terminal type facilitates secure connections.</p><p>Dimensionally compact yet robustly built, the product measures 17.8 mm in width, 86 mm in height, and has a depth of 70 mm with a weight of just 0.187 kg. This makes it easy to integrate into existing setups without compromising on space or stability.</p><p>Compliance with standards IEC 61009-1 and IEC 61009-2-2 as well as AS/NZS 61009.1 underscores its adherence to international safety and performance benchmarks. The device is designed for use within environments that have pollution degree IP2 ratings.</p><p>With an electrical durability rating extending up to 10,000 cycles and short circuit capacity matching its breaking capability at 10 kA, this product promises longevity even under challenging operational conditions.</p><p>Its cable cross-section accommodates from single-core wires ranging from solid core (1-35 sq-mm) to multi-wired configurations (1-25 sq-mm), providing flexibility in installation options. Furthermore, the curve type C characteristic ensures compatibility with typical load types found in industrial settings.</p><p>Mounting is straightforward via DIN rail installation while supporting residual current type A detection for enhanced safety monitoring against potential leakage currents.</p><p>Operationally versatile across temperatures from -25&#176;C to +55&#176;C and supported by overvoltage category III classification; this device remains resilient across varied environmental conditions while maintaining optimal functionality at frequencies between 50/60 Hz.</p><p>Connection capacities are versatile: busbar connections support up to ten square millimeters; rigid cables range between one-to-25 square millimeters; flexible cables between one-to-sixteen square millimeters—catering adequately towards different wiring needs alongside bottom power supply connection support which simplifies integration processes further still!</p><p>Housing comes finished elegantly within RAL7035 grey color scheme featuring contact position indication through red &#39;ON&#39; or green &#39;OFF&#39; signals allowing users quick visual confirmation regarding operational status instantly! Earthing switch operates undelayed fashion whilst exhibiting instantaneous operating characteristics promising rapid response times during usage scenarios where speed matters most critically so you can trust reliability every step way knowing quality assured throughout entire lifecycle usage experience thanks comprehensive design considerations put place right outset ensuring peace mind long-term investment decisions made today will continue paying dividends tomorrow too!</p>
