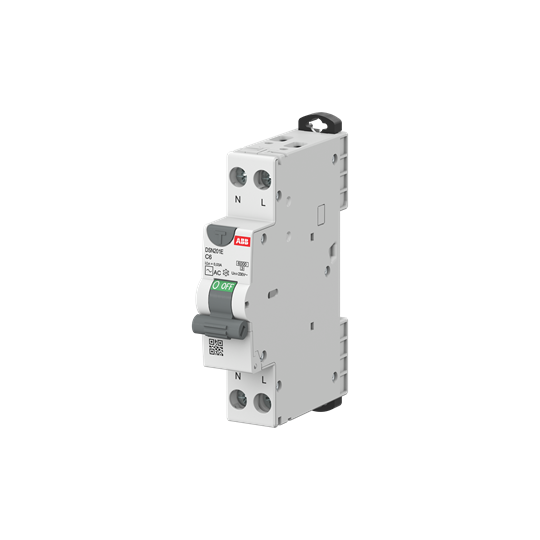

<p>When it comes to ensuring the safety and reliability of your electrical systems, selecting the right Residual Current Circuit Breaker with Overcurrent protection (RCBO) is crucial. This RCBO offers a robust solution designed for industrial and commercial applications, providing both overcurrent and earth fault protection in one compact unit. Let&#39;s delve into its specifications to see how it fits within your technical requirements.</p><p>Rated at 20 A, this RCBO is engineered to handle typical circuit loads efficiently. It operates at a rated voltage of 240 V with an impressive breaking capacity of 6 kA, ensuring that it can effectively interrupt fault currents without compromising system integrity. The device&#39;s rated impulse withstand voltage stands at 4 kV, offering excellent resilience against transient overvoltages.</p><p>Measuring just 17.8 mm in width, this RCBO is compact yet powerful. Its dimensions—86 mm in height and 70 mm in depth—make it suitable for space-constrained installations on standard DIN rails. Despite its small size, it boasts a solid construction with an IP20 degree of protection, safeguarding internal components from dust ingress.</p><p>The device complies with several international standards: IEC/EN 61009-1, IEC 61009-2-2, and AS/NZS 61009.1. This compliance ensures that the RCBO meets rigorous safety and performance criteria essential for Australian markets.</p><p>With a power loss of only 3 W during operation and an electrical durability rating of up to 10,000 cycles, this product promises long-term efficiency and reliability. It supports cable cross-sections ranging from solid core cables between 1-25 sq-mm to multi-wired cables between 1-16 sq-mm.</p><p>The terminal type features screw clamps for secure connections while accommodating busbar connections up to 10 sq-mm or rigid/flexible wires as per the specified capacities. Additionally, its contact position indication provides clear operational status with red indicating ON and green indicating OFF positions.</p><p>Designed for Type A residual current protection with instantaneous operating characteristics and undelayed earthing switch type, this device covers a wide range of protective needs across different scenarios. It operates reliably within ambient temperatures ranging from -25&#176;C to +55&#176;C.</p><p>The housing color RAL7035 Grey not only gives it a professional look but also blends seamlessly into various installation environments without drawing unnecessary attention—ideal for maintaining aesthetic consistency in industrial settings.</p><p>In summary, if you are looking for an efficient mid-cycle solution capable of handling demanding conditions while adhering strictly to industry standards—the technical specifications indicate that this RCBO could be well-suited for your application needs.</p>
