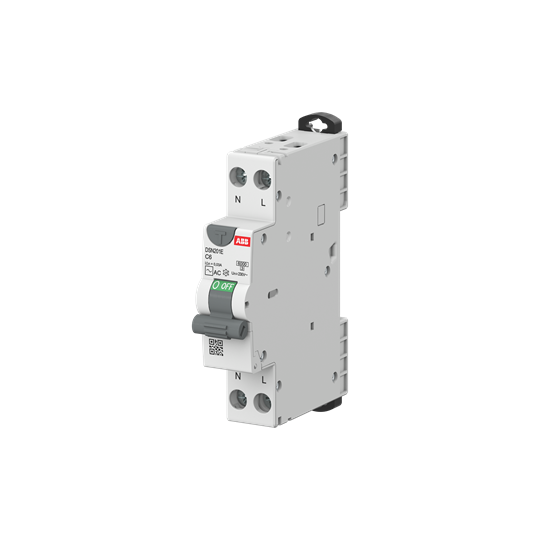

<p>When it comes to ensuring safety and efficiency in industrial and commercial electrical installations, choosing the right Residual Current Circuit Breaker with Overcurrent protection (RCBO) is crucial. This RCBO is designed for optimal performance in environments where reliability and precision are paramount.</p><p>Rated at a current of 6 A, this RCBO offers robust protection against overcurrents while maintaining an impressive rated impulse withstand voltage of 4 kV. Its insulation voltage stands at 500 V, making it suitable for various applications within its rated voltage of 240 V. With a power loss of just 1.8 W, it ensures energy efficiency without compromising on performance.</p><p>This device features a single pole plus neutral (1P+N) configuration with a breaking capacity of 6 kA, ensuring effective interruption during fault conditions. It meets the IP20 degree of protection standard, safeguarding against solid objects larger than 12 mm but not providing water protection—ideal for indoor installations.</p><p>The RCBO&#39;s dimensions are compact, with a width of 17.8 mm, height of 86 mm, and depth of 70 mm. These measurements facilitate easy integration into existing systems via DIN rail mounting. The screw clamp terminal type allows secure connections with cable cross sections ranging from solid core (1-25 sq-mm) to multi-wired (1-16 sq-mm). </p><p>In terms of durability and standards compliance, this product adheres to IEC/EN standards such as IEC/EN 61009-1 and AS/NZS 61009.1, ensuring adherence to international safety protocols. It boasts an electrical durability rating capable of enduring up to 10,000 cycles—a testament to its longevity in demanding settings.</p><p>The RCBO operates effectively across a frequency range of 50/60 Hz and can handle short circuit capacities up to 6 kA while maintaining operational integrity even under varying ambient temperatures from -25&#176;C to +55&#176;C.</p><p>Its Type A residual current detection ensures sensitivity towards both AC and pulsating DC currents—essential for modern electrical systems that may introduce complex fault scenarios due to electronic devices or variable speed drives.</p><p>Additional technical specifications include an overvoltage category III rating suitable for installation downstream from primary distribution boards; arbitrary power supply connection orientation; housing in RAL7035 grey; dielectric test voltage at 2.5 kV; contact position indication via red (ON) or green (OFF); instantaneous operating characteristic; undelayed earthing switch type; busbar connecting capacity up to ten sq-mm rigid or flexible wiring options supported by wire stripping length set at thirteen millimeters—all contributing towards streamlined installation processes alongside enhanced user experience through visual feedback indicators provided directly upon device faceplate itself!</p><p>This comprehensive feature set makes this RCBO an ideal choice when seeking reliable circuit protection solutions tailored specifically toward Australian markets requiring adherence not only towards local but also internationally recognized safety benchmarks alike!</p>
