ABB OS1250D12P SWITCH FUSE OS1250D12P
Zoom

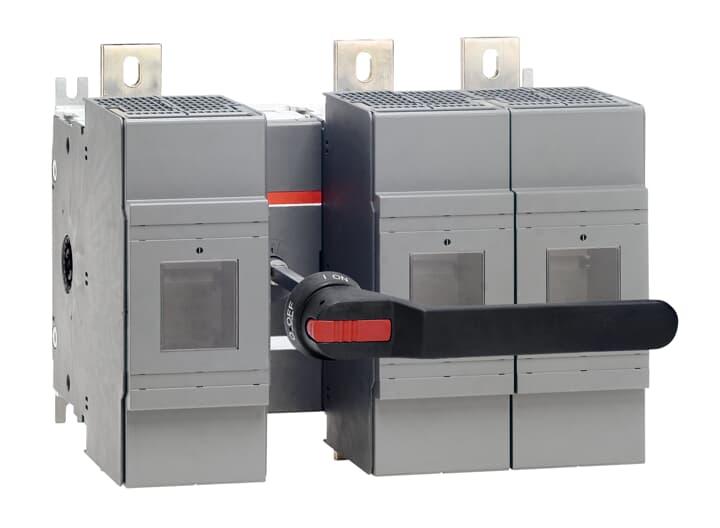

ABB OS1250D12P SWITCH FUSE OS1250D12P
Product Code: OS1250D12P
Switch Fuses,Front Operated,3-pole,12 (Between the Poles),DIN,4,Handle and shaft included,
Technical Specifications
Brand
ABB
Conventional Free-Air Thermal Current - Ith (A)
1250
Conventional Thermal Current - Ithe (A)
1000
Degree of Protection - Handle
IP65
Design of Control Element
Long Turning Handle
Dimensions (mm)
432W x 356H x 371D
Handle Colour
Black
Handle Material
Plastic
Handle Type
Pistol
Included
Handle, Shaft
Main Circuit Electrical Connection
Bolt Connection
Maximum Operational Voltage AC (V)
1000
Mode of Operation
Front Operated
Mounting Type
Busbar Mount
No. of Poles
3
Operating Mechanism
Mechanism Between the Poles 12
Pollution Degree
3
Position of Control Element
Front Side
Power Loss (W)
110/Pole
Rated Conditional Short-Circuit Current - Inc (kA)
80
Rated Current (A)
1250
Rated Impulse Withstand Voltage (kV)
12
Rated Insulation Voltage (V)
1000
Rated Operational Current AC-22A 380-415V (A)
1250
Rated Operational Current AC-23A 380-415V (A)
1000
Rated Operational Power AC-23A 380-415V (kW)
1000
Rated Operational Power AC-23A 400-415 V (kW)
560
Rated Operational Power AC-23A 500V (kW)
710
Rated Operational Power AC-23A 690V (kW)
1000
Rated Operational Voltage (V)
690
Rated Short-Time Withstand Current - Icw (kA)
40
Rated Short-time Withstand Current - Icw (kA/1s)
40
Rated Uninterrupted Current - Iu (A)
1000
Standards and Approvals
IEC 60947-3
Suitable For
NH4
Terminal Type
Lug terminals
Terminal Width (mm)
50
Type
Main Switch
